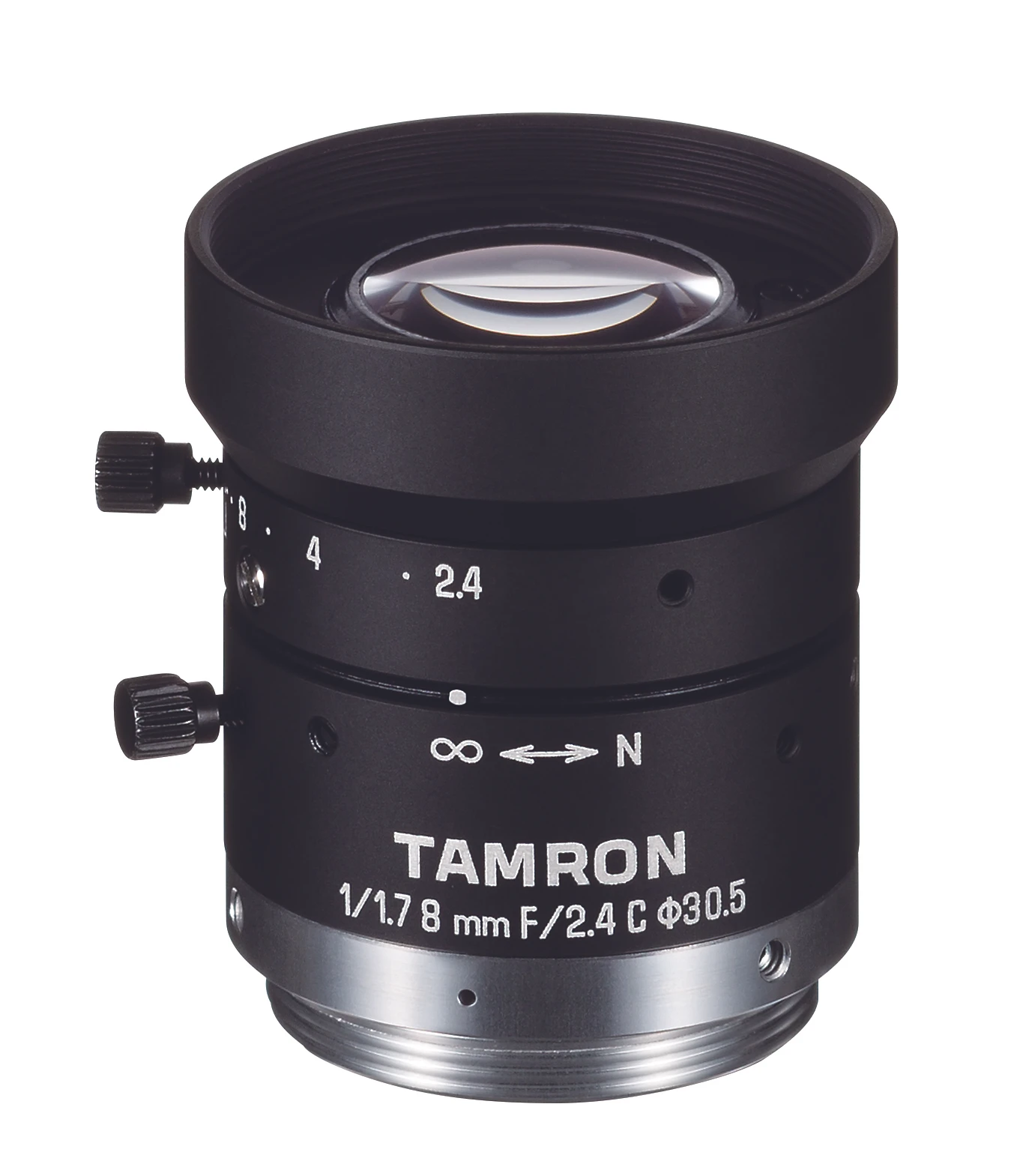

Tamron 6MP Fixed-Focal M117FM08

Product Specifications

Imager Size

1/1.7"
Focal Length

8mm
Iris Range

F/2.4-16 (aperture)
Iris Operation

Manual w/Lock
Focus Operation

Manual w/Lock
Mount

C
1/1.7" Angle of View (horizontal/vertical)

52.2° x 39.5°
1/1.8" Angle of View (horizontal/vertical)

50.9° x 35.1°
1/2" Angle of View (horizontal/vertical)

44.5° x 33.8°
1/3" Angle of View (horizontal/vertical)

33.8° x 25.6°
Filter Size

M30.5 P=0.5mm
Focus Range

0.1mm ~∞
Wave Length

Visible Light
TV Distortion

-1.0%
Weight

48 grams
Operating Temperature

-20° C ~ +60° C

Tamron 6MP Fixed-Focal M117FM08

Available Variations
