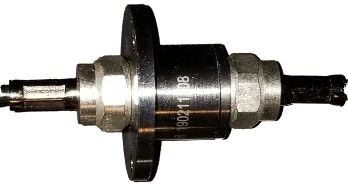

Channel Designation
Channel 1
-
Interface Type/Material/Surface Finish

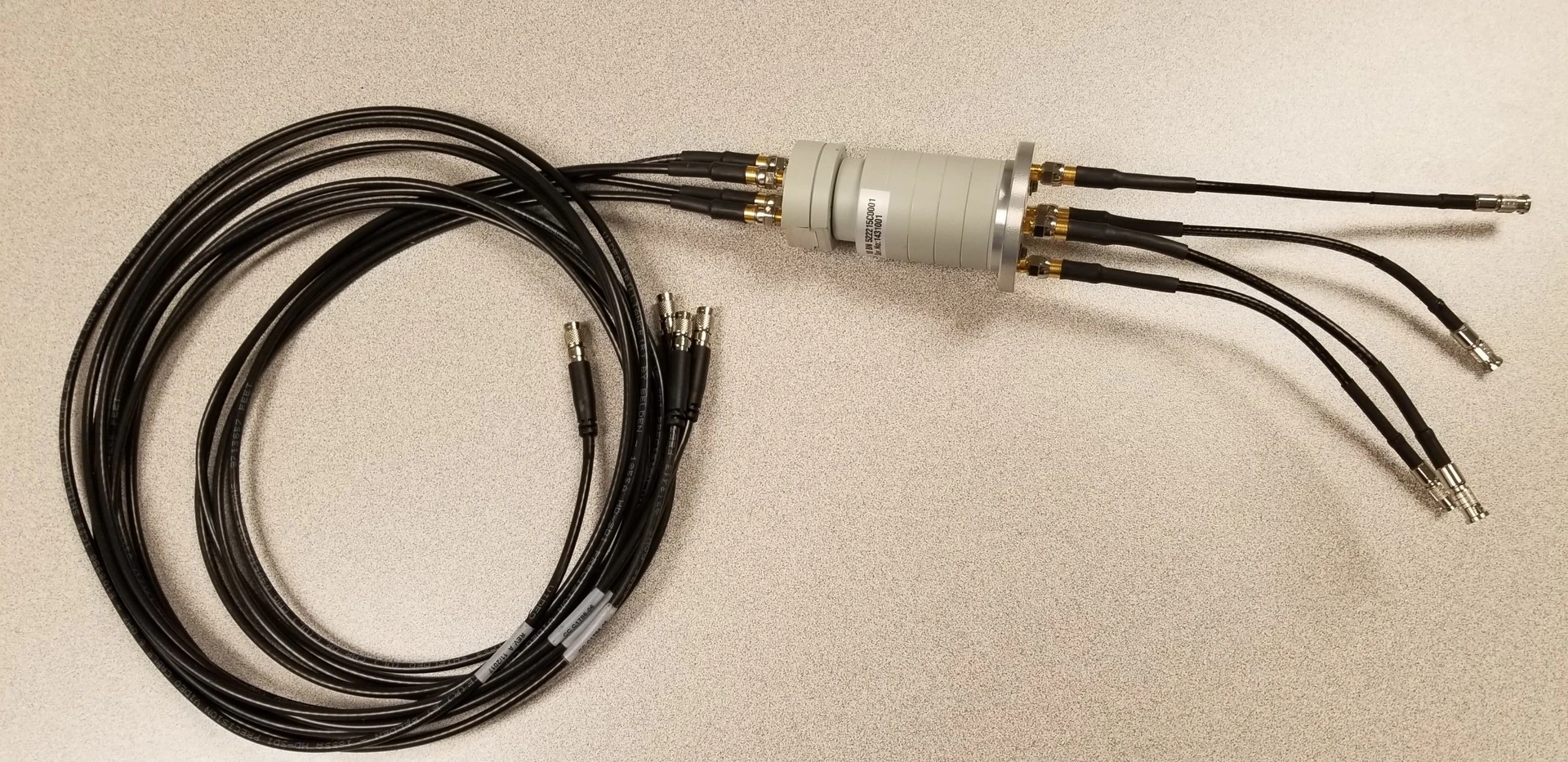

Stator side: cable pigtails with HD BNC male (75 Ω) / rotor side: cable pigtails with HD BNC male (75 Ω) connector surfaces: inner conductors - gold plated / outer conductors – Cu-Sn-Zn plated
-
Interface Orientation
Style 1
-
Frequency Range
DC to 6 GHz
-
Average Power Capability
20W
-
VSWR (max.)
1.3 @ DC to 3 GHz | 1.6 @ 3 to 6 GHz
-
VSWR Variation Over Rotation (max.)
0.2
-
Insertion Loss (max.)
0.6 dB@ DC to 3 GHz | 1.0 dB@ 3 to 6 GHz
-
Insertion Loss variation Over Rotation (max.)
0.2 dB
-
DC Carrying Capability
0.5 A @ 48 V DC, full RF avg. power | 2A @ 48 V DC, 1W RF avg. power
-
Rotating Speed (max.)
60 rpm
-
Life (min.)
2*10^6 revolutions @ 0.5 A max. DC current | 0.25*10^6 revolutions @ 2 A max. DC current
-
Torque Maximum (room temp.)
0.05 Nm @ start-up | 0.05 Nm @ rotation
-
Interface Loads (max.)
No Loads Allowed
-
Case Material
Copper Alloy
-
Case Surface Finish
Cu-Sn-Zn
-
IP Protection Level
IP40 per EN 60529
-
Weight (approx.)
0.2 Kg
-
Marking
Laser Engraving
-
Ambient Temperature Range
-40°C to +85 °C
-
Relative Humidity (max.)
95% (non-condensing)
