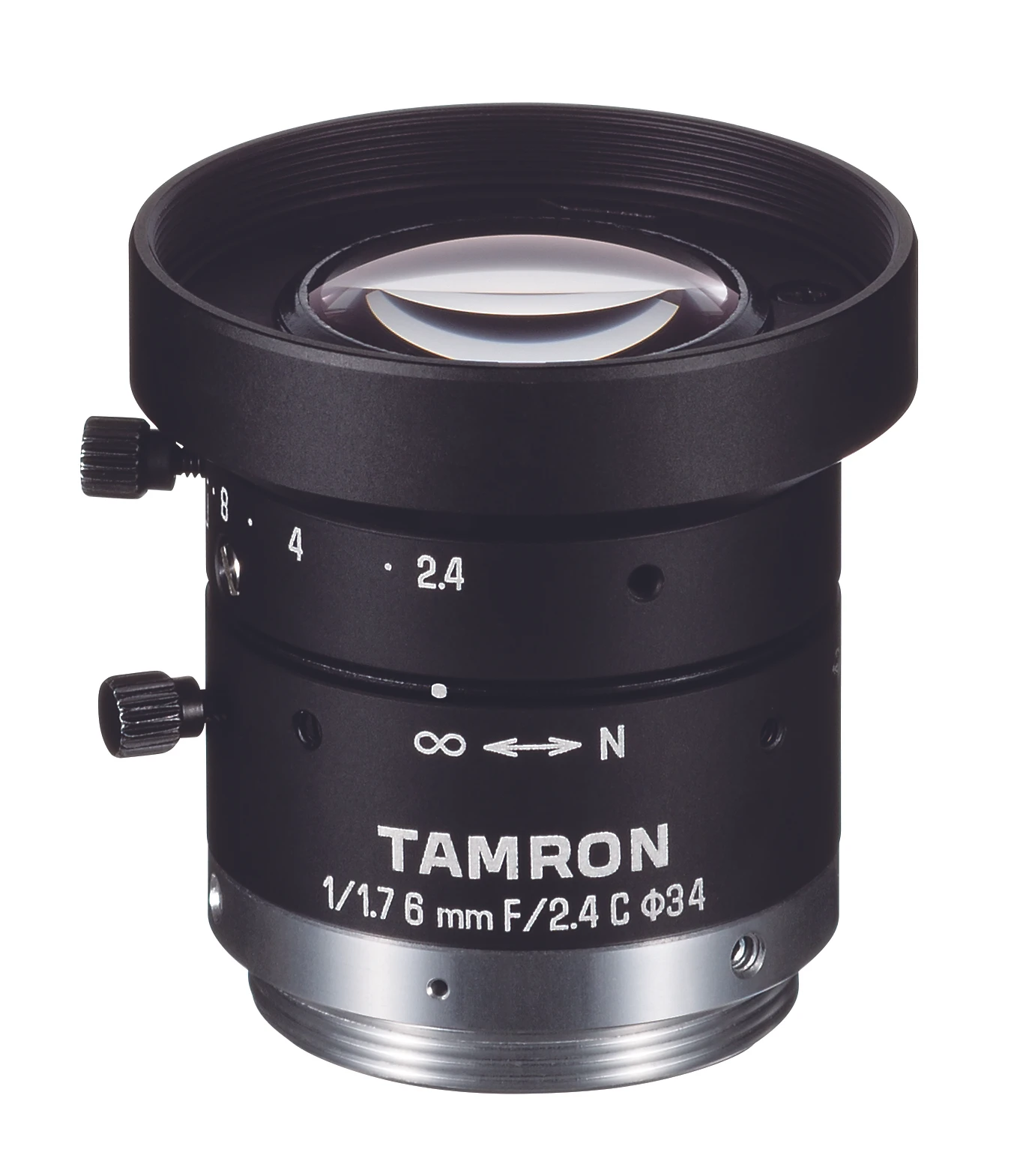

Tamron 6MP Fixed-Focal M117FM06

Product Specifications

Imager Size

1/1.7"
Focal Length

6mm
Iris Range

F/2.4-16 (aperture)
Iris Operation

Manual w/Lock
Focus Operation

Manual w/Lock
Mount

C
1/1.7" Angle of View (horizontal/vertical)

65° x 50.5°
1/1.8" Angle of View (horizontal/vertical)

64.2° x 44.9°
1/2" Angle of View (horizontal/vertical)

56.5° x 43.4°
1/3" Angle of View (horizontal/vertical)

43.4° x 32.9°
Filter Size

M30.5 P=0.5mm
Focus Range

0.1mm ~∞
Wave Length

Visible Light
TV Distortion

-1.5%
Weight

50 grams
Operating Temperature

-20° C ~ +60° C

Tamron 6MP Fixed-Focal M117FM06

Available Variations
