Metaphase Technologies UL-LL2109
Highlights
The Metaphase Technologies UL-LL2109 UL Line Light is the latest design in the Metaphase family of LED lights for line scan. Its narrow, structured beam delivers high intensity and concentrated light for the narrow field of view of a traditional line scan camera. The high intensity and uniformity allow the UL Line Light to be used as front light to inspect for material defects, angled to obtain an off-axis effect to highlight surface defects, or it may be placed beneath the object for a backlight effect to inspect for holes, voids, or contaminants. The UL Line Light is available with a wide variety of LED colors such as white, red, green, blue, IR, UV (395 nm), and even RGB&IR with independent color control up to 150 inches (3.81m) in length for large web applications.
Metaphase Technologies UL-LL2109 Features
- Passive cooling (no fans needed) with optional compressed air and liquid-cooled configurations for higher intensity / higher ambient temperature environments
- Compressed air [UC] and liquid-cooled [UG] versions available
- Utilizing a full rod focal lens, the lights provide a tightly structured beam of light up to 12 inches (30.48 cm). The optimal working distance is 5 inches (12.7 cm). For working distances beyond 12 inches (30.48 cm), please see our Collimated Line Light offerings.
- Compliance: ETL Listed, UL Standards, CE, RoHS
- High uniformity (±5%) makes the UL Line Light ideal for front and backlighting line scan applications
- Built-in Constant Current Driver with 0-10VDC
- Compatible with DDC-3 and ILD-35 Dimmers
- 600kHz FastTrig compatible
- Polarization available
Metaphase Technologies UL-LL2109 Applications
- Web inspection (foil, plastic film, PCBs, glass, paper, web converting, etc.)
- Geometry measurements of long targets
- Direct position measurement
- Printed circuit board inspection
- Tube or bottle inspection
- Machine Vision & Automation
- Robotic Inspection

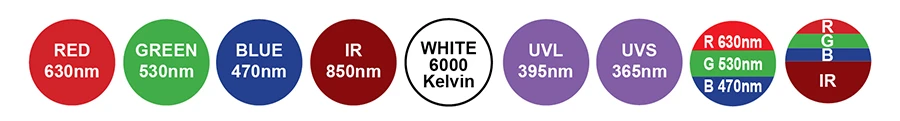

Available Wavelengths
Product Specifications
