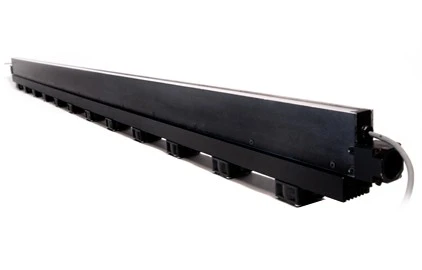

Metaphase Technologies MB-LL206
Highlights
The Metaphase Technologies MB-LL206 MetaBright Line Light is another product in the Metaphase family of LED lights for line scan. Its narrow, structured beam delivers high intensity and concentrated light for a narrow field of view of a traditional line scan camera. The high intensity and uniformity allow the MetaBrightTM Line Light to be used as front light to inspect for material defects, angled to obtain an off-axis effect to highlight surface defects, or it may be placed beneath the object for a backlight effect to inspect for holes, voids, or contaminants. The MetaBrightTM Line Light is available in a wide variety of LED colors such as white, red, green, blue, IR, UV (395 nm), and even RGB&IR with independent color control up to 150 inches (3.81m) in length for large web applications.
Metaphase Technologies MB-LL206 Features
- High uniformity both laterally and longitudinally
- High intensity, over 1 million Lux
- Lens options for various beam widths and working distances
- Available in various Light wavelengths including IR, UV, and RGB
- Strobe synchronization; control compatibility for high precision pulse-modulation and 0-10V intensity control capability
- Adjustable lens focusing range of mm to meters
- Backlight versions for web backlight & silhouetting applications
- From 1” to 120” (10ft) in length
- Built-in constant current driver(s) provides consistent illumination output
- 24V version requires no special controllers; simply provide 24VDC
Metaphase Technologies MB-LL206 Applications
The MB-LL206 can be used in applications such as,
- Web Inspection (Foil, Plastic Film, PCBs, glass, paper, web converting, etc)
- Geometric measurements of long targets
- Direct Position measurement
- Printed circuit board inspection
- Tube or bottle inspection
- Quality control in food, chemicals, and the textile industry
- Detection of holes in highly transparent films (Backlighting) and laminated glass
- Nonwovens
- Fabrics
- Solar Cells
- Hot Steel Inspection
- Long Working distance applications such as tunnel, rail, or ceiling inspection
- High precision, High accuracy measurement applications
- Machine Vision & Automation
- Robotic Inspection

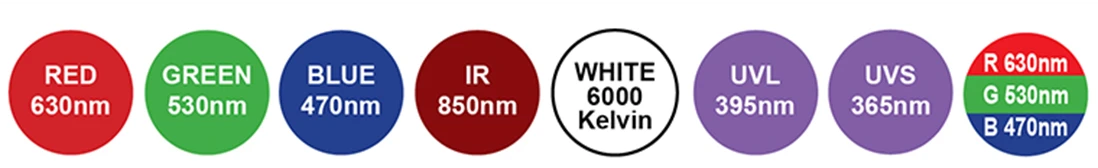

Available Wavelengths
Product Specifications
