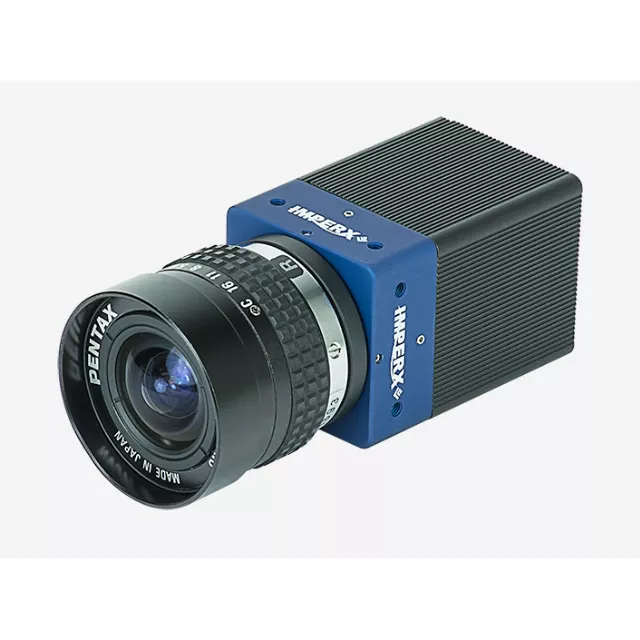

Imperx Cheetah CameraLink C4510

Highlights

The C4510 is our most technically advanced, ruggedized, global shutter, progressive scan digital camera in a compact design ideal for industrial, scientific, medical, aerospace, transportation and other applications. The C4510 incorporates a number of unique features tailored to reduce system complexity, reduce latency, and expand the usable operational range from -30 °C to +75 °C.

The C4510 features the Sony Pregius S™ IMX541 Global Shutter CMOS image sensor with a native resolution of 4512 x 4512 in a 1.1” optical format delivering up to 25.9 frames per second with the Camera Link® Full Power over Camera Link (PoCL®) output. The Pregius S technology uses a stacked back-illuminated pixel structure offering reduced pixel size, increased peak quantum efficiency, and improved sensitivity with fast lenses. CMOS technology eliminates smear columns from areas of ultra-bright intensity and specular reflections in uncontrolled lighting applications. The camera has excellent sensitivity, fast frame rates, exceptional dynamic range and supports strobe outputs, trigger inputs, automatic exposure, automatic gain control with multiple LUTs, and other high-value functions.

The Imperx Cheetah line provides excellent image quality with Imperx proprietary processing. In addition, Imperx provides precision controls and gives you full access to raw data without corrections. Using the simple, intuitive graphical user interface, you can quickly apply image corrections, if desired. The C4510’s flexibility, image quality, and speed make it suitable for a broad range of diverse and demanding applications, but “one size doesn’t fit all,” and Imperx can help optimize the camera to your exact requirements.
