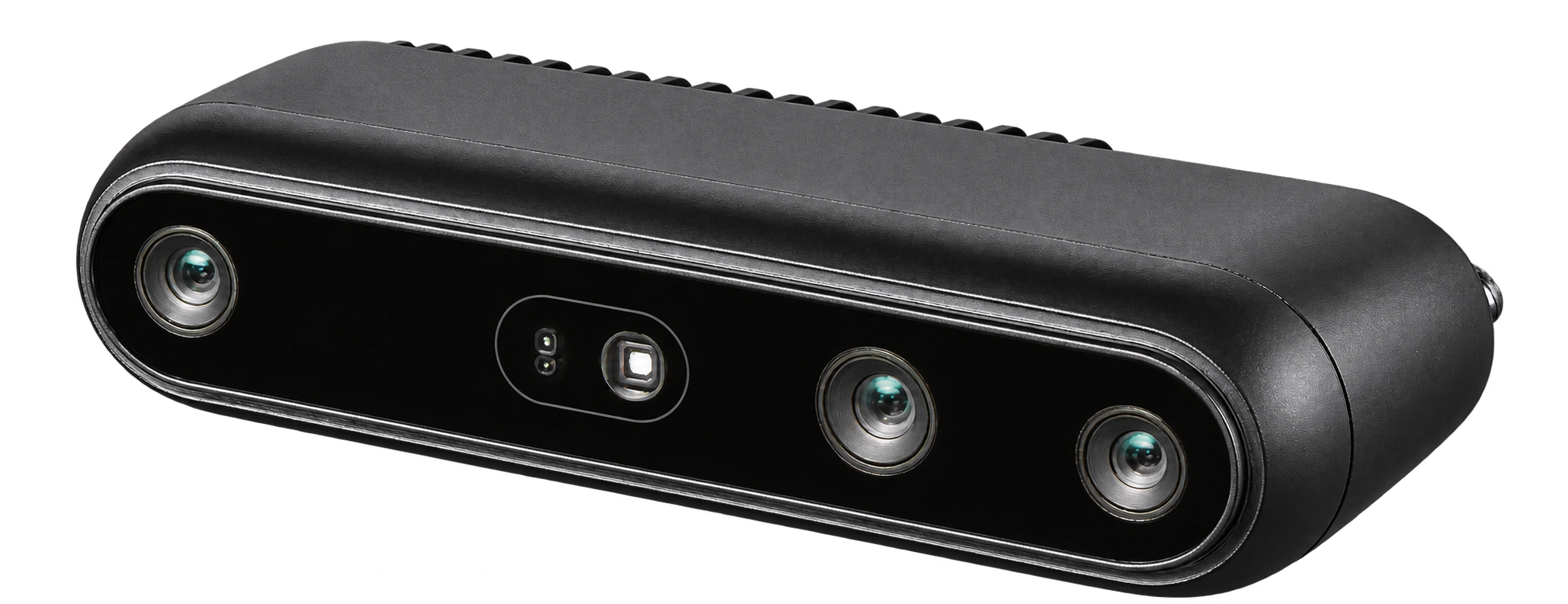

Orbbec Gemini 338Le Stereo Vision Camera

Orbbec Gemini 338Le is an industrial Ethernet stereo vision camera designed for logistics, autonomous robotics, and fixed automation in challenging lighting conditions. Part of the Gemini 330 Series, it combines stereo depth sensing with an IR bandpass optical filter, Orbbec MX6800 processing, and a single-point dToF ranging module for robust 3D perception.

The Gemini 338Le provides depth resolution up to 1280 × 800 at 30 fps, a 0.25 m to 20 m+ depth range, and an optimal operating range of 0.25 m to 6 m. Its 95 mm stereo baseline, Gigabit Ethernet with PoE, IP67 protection, and ambient-light-resistant optical design support reliable depth imaging in warehouses, factories, and other demanding industrial environments.

IR Bandpass Optical Filter
— Rejects out-of-band ambient light to improve depth stability in mixed, bright, and changing lighting conditions.

Integrated dToF Ranging
— A 940 nm single-point dToF module helps compensate for short-distance blind spots during close-range operation.

Industrial Gigabit Ethernet & PoE
— M12 X-coded Ethernet provides robust data transmission and IEEE 802.3af PoE over cable lengths up to 100 meters.

High Spatial Precision
— Delivers spatial precision of ≤0.8% at 2 m and ≤1.6% at 4 m.

IP67 Ruggedized Design
— Dust-tight and water-resistant construction supports demanding industrial and logistics environments.

Industrial Synchronization
— Supports M8 hardware synchronization, PTP timing, RS485 communication, and multi-camera operation.
