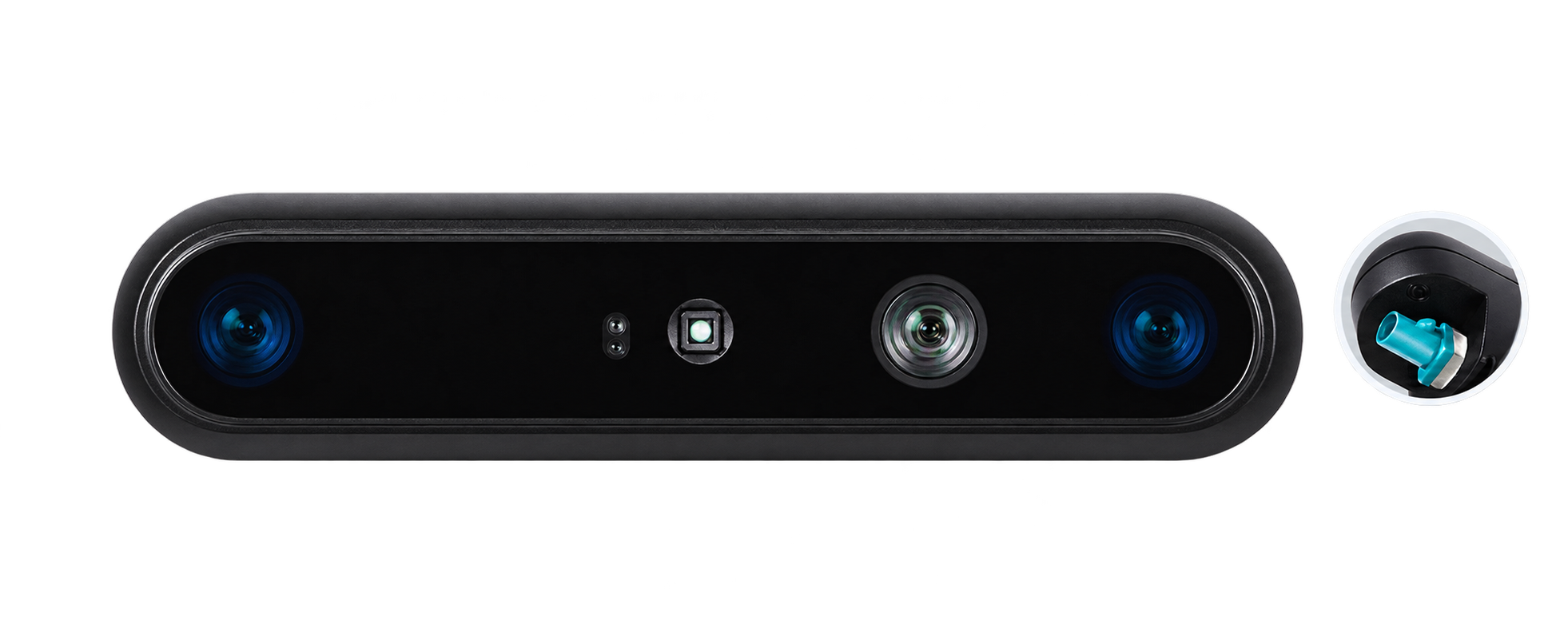

Orbbec Gemini 335Lg Stereo Vision Camera

Orbbec Gemini 335Lg is a GMSL2 stereo vision camera designed for autonomous mobile robots, robotic arms, and other vision systems operating in motion. Based on the Gemini 335L platform, it combines active and passive stereo vision with GMSL2/FAKRA-Z connectivity for secure, high-bandwidth data transmission.

The Gemini 335Lg provides depth resolution up to 1280 × 800 at 30 fps, a 0.17 m to 20 m+ depth range, and an optimal operating range of 0.25 m to 6 m. Its 95 mm stereo baseline, dual global-shutter imaging, IP65 protection, and GMSL2 transmission up to 15 meters support reliable 3D perception in dynamic robotic and industrial environments.

GMSL2 / FAKRA-Z Connectivity
— High-bandwidth transmission up to 6 Gbps with secure connectivity for robots operating in motion.

Long-Distance Connection
— Supports GMSL2 cable runs up to 15 meters without extension cables.

Long-Range Stereo Vision
— A 95 mm baseline supports an optimal depth range of 0.25–6 m and sensing beyond 20 m.

Global Shutter Imaging
— Global-shutter depth and RGB sensors provide clear imaging in dynamic robotic applications.

Vibration-Resistant Design
— Secure FAKRA connectivity and IP65 protection support harsh industrial and mobile environments.

Multi-Camera Synchronization
— Supports synchronized multi-camera operation through GMSL2/FAKRA-Z or the 8-pin synchronization interface.
