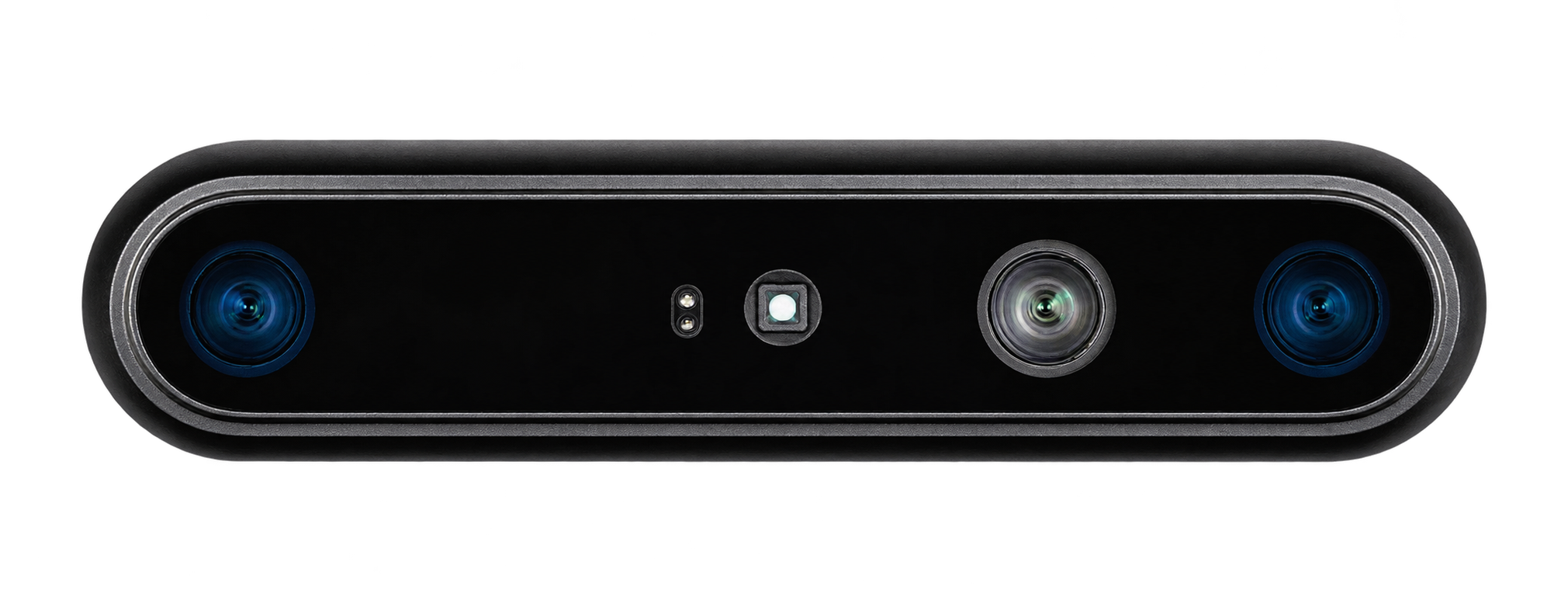

Orbbec Gemini 335Le Stereo Vision Camera

Orbbec Gemini 335Le is a rugged Ethernet stereo vision camera designed for dynamic industrial robotics and demanding automation environments. Building on the depth performance of the Gemini 335L, it adds industrial M12 and M8 connectivity, Gigabit Ethernet with PoE, and an IP67-rated enclosure.

The Gemini 335Le provides depth resolution up to 1280 × 800 at 30 fps, a 0.25 m to 20 m+ depth range, and an optimal operating range of 0.25 m to 6 m. Its 95 mm stereo baseline, global-shutter imaging, industrial synchronization, and Ethernet transmission up to 100 meters support reliable 3D perception in factories, warehouses, forklifts, and autonomous mobile robots.

Industrial Gigabit Ethernet
— M12 X-coded Ethernet supports stable high-speed data transmission and PoE over cable lengths up to 100 meters.

IP67 Ruggedized Design
— Dust-tight and waterproof construction supports demanding factory, warehouse, and outdoor environments.

Long-Range Stereo Vision
— A 95 mm baseline supports an optimal depth range of 0.25–6 m and sensing beyond 20 m.

High Spatial Precision
— Delivers spatial precision of ≤0.8% at 2 m and ≤1.6% at 4 m.

MX6800 Edge Processing
— In-camera depth processing provides low-latency 3D data for time-critical robotic applications.

Industrial Synchronization
— M8 A-coded connectivity supports multi-device synchronization, DC power, RS-485 communication, and precise timing.
