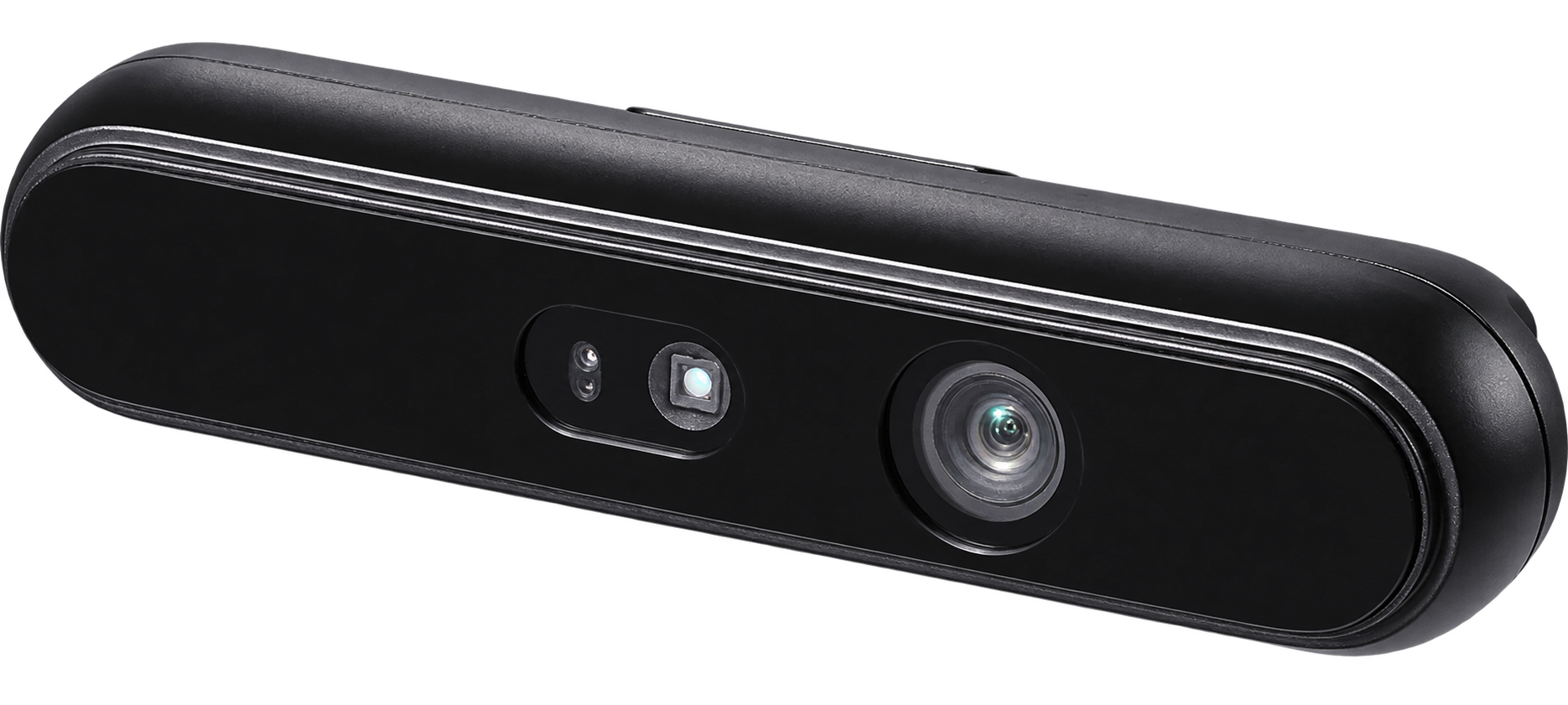

Orbbec Gemini 336L Stereo Vision Camera

Orbbec Gemini 336L is a long-baseline stereo vision camera designed for robotics, industrial automation, and 3D perception in challenging lighting conditions. Part of the Gemini 330 Series, it combines active and passive stereo vision with an IR-Pass depth filter and Orbbec’s MX6800 depth processing ASIC.

The Gemini 336L provides depth resolution up to 1280 × 800 at 30 fps, a 0.17 m to 20 m+ depth range, and an optimal operating range of 0.25 m to 6 m. Its 95 mm stereo baseline, IR-Pass filtering, global-shutter imaging, and IP65 protection support precise long-range depth perception in reflective, brightly lit, and outdoor environments.

IR-Pass Optical Filter
— Filters visible-light interference to improve depth stability around glare, reflective surfaces, and challenging ambient lighting.

Long-Range Stereo Vision
— A 95 mm baseline supports an optimal depth range of 0.25–6 m and sensing beyond 20 m.

High Spatial Precision
— Delivers spatial precision of ≤0.8% at 2 m and ≤1.6% at 4 m.

Global Shutter Imaging
— Global-shutter depth and RGB imaging reduces motion distortion in dynamic robotic applications.

Indoor & Outdoor Operation
— IP65 protection supports demanding industrial, robotic, and outdoor environments.

Multimodal Synchronization
— An 8-pin synchronization interface supports coordinated depth, RGB, IR, IMU, and multi-camera operation.
