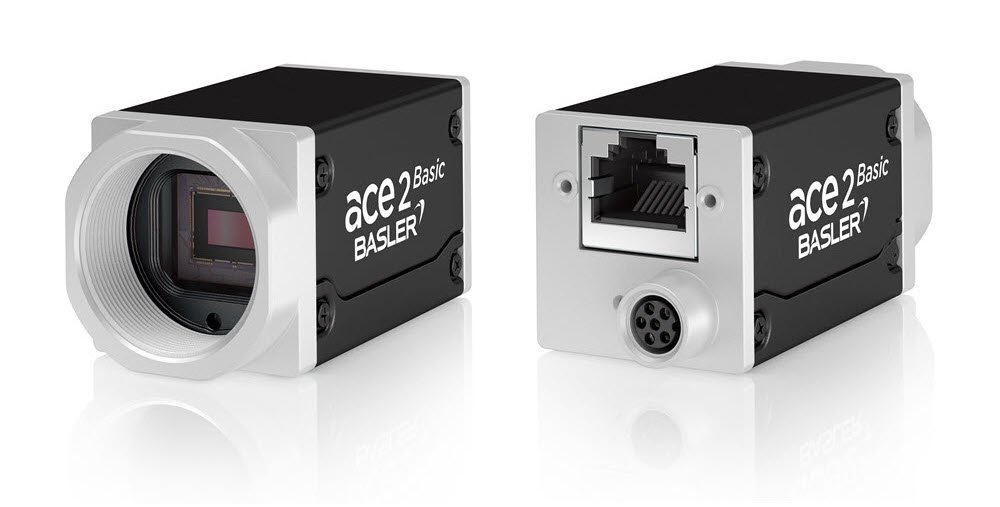

Basler ace 2 a2A2048-37gmBAS Camera

Highlights

The Basler ace 2 a2A2048-37gmBAS is a compact monochrome GigE area scan camera designed for machine vision applications that require reliable image quality, strong contrast, and visible plus near-infrared sensitivity. Featuring the Sony IMX900 CMOS global shutter sensor, this ace 2 R Basic camera delivers 3.2 MP resolution with a 2048 x 1536 image size and a frame rate of up to 37 fps.

With 2.25 µm pixels, a 1/3.1″ sensor format, and a GigE interface, the a2A2048-37gmBAS provides a practical balance of resolution, compact size, and integration flexibility. Its monochrome output, global shutter performance, Visible + NIR spectrum response, Power over Ethernet support, C-mount lens interface, and Basler pylon software compatibility make it well suited for factory automation, inspection, positioning, robotics, near-infrared imaging tasks, and OEM machine vision systems.

Features

• Sony IMX900 CMOS sensor provides 3.2 MP monochrome imaging for industrial machine vision applications.
• 2048 x 1536 resolution supports detailed inspection, positioning, and automation tasks.
• Up to 37 fps enables efficient image acquisition for standard GigE vision systems.
• Global shutter sensor helps reduce motion distortion when imaging moving parts or triggered processes.
• GigE interface provides widely supported industrial camera connectivity over standard Ethernet infrastructure.
• Visible + NIR spectrum response supports applications that benefit from both visible and near-infrared imaging.
• 2.25 µm x 2.25 µm pixels provide fine spatial sampling in a compact sensor format.
• 1/3.1″ sensor format supports compact optical setups and C-mount lens compatibility.
• Monochrome output supports applications where contrast, sensitivity, and measurement accuracy are more important than color information.
• Power over Ethernet allows camera power and data transfer through the Ethernet connection for simplified cabling.
• Hardware trigger, software trigger, and free-run operation support flexible synchronization in automated inspection systems.
• Basler pylon software support simplifies camera setup, acquisition, and system integration.

Applications

• Factory automation inspection
• Machine vision alignment and positioning
• Robotics vision
• Near-infrared imaging applications
• Object detection and sorting
• Packaging inspection
• Electronics inspection
• Barcode and label inspection
• Pick-and-place guidance
• OEM machine vision system integration
