Ametek Phantom VEO 610


The Phantom VEO 610 shares the premium image performance of the VEO 1010 and VEO 1310 cameras. It is available in both the L (light) and S (full) body styles.

The excellent light sensitivity of the VEO 1310 is now readily available in the VEO 610 with a native daylight sensitivity of ISO 25,000 (mono). This VEO includes the low noise of 10 electrons to provide detailed dark environment imaging with less supplemental light. Phantom binning mode is included for a boost in frame rate and ISO at lower resolutions.

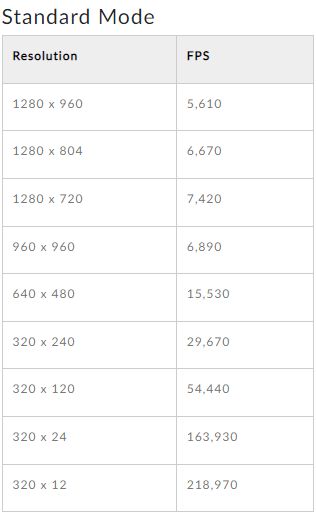

  • 5,610 fps at 1280 x 960
  • Exposure Index: Mono 25,000 – 125,000 | Color 6,400 – 32,000
  • Binning Mode – frame rate boost at 640 x 480 and below
  • Up to 72 GB RAM
  • 12-bit depth
  • Full Phantom Features and connectivity
  • Programmable I/O – Assign and define camera signals

Product Specifications

AMETEK (Vision Research & Phantom Camera Technology)
Ametek Phantom VEO 610

Available Variations
