Ametek Phantom VEO 1010


The VEO 1010 features the highest light sensitivity in the VEO product line and captures images at 10 Gpx/s. It is available in both L (light) and S (full) body styles, meeting the needs of any research environment.

The VEO 1010 captures at over 8,420 frames-per-second at 1.2 Megapixel resolution. A native daylight sensitivity of ISO 25,000 (mono) is combined with low noise of 10 electrons to provide exceptional image quality even in darker environments, requiring less supplemental light. Binning mode is included for a boost in frame rate and ISO at lower resolutions.


  • 8,420 fps at 1280 x 960
  • Exposure Index: Mono 25,000 – 125,000 | Color 6,400 – 32,000
  • Up to 72 GB RAM

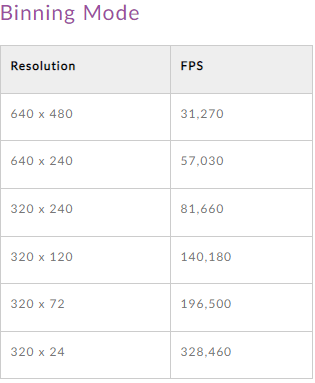

  • Binning Mode – frame rate boost at 640 x 480 and below
  • 12-bit depth
  • Full Phantom Features and connectivity
  • Programmable I/O – Assign and define camera signals

Product Specifications

AMETEK (Vision Research & Phantom Camera Technology)
Ametek Phantom VEO 1010

Available Variations
