Ametek Phantom VEO 640


The Phantom VEO 640 combines the benefits of four-megapixel imaging with high frame rates in a compact and rugged body. Available in two styles, L (light) and S (full), the camera is used in a wide variety of applications due to features that accommodate the needs of both scientific and media industries.

The VEO 640 is a 6 Gpx/s throughput high-speed camera ideal for HD capture and scientific image techniques. The proprietary 4 Mpx 35mm CMOS sensor strikes the perfect balance between increased image data and light sensitivity. Camera flexibility is increased through interchangeable lens mounts.

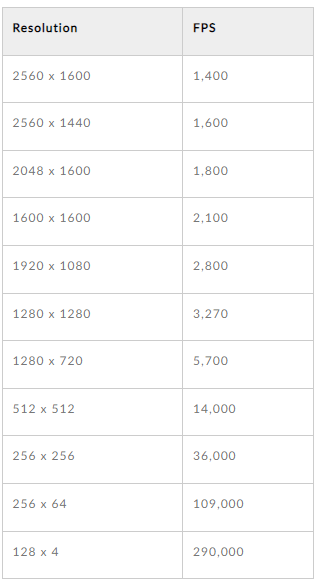

  • 1,400 fps at 2560 x 1600
  • Exposure Index: Mono 6,400 – 32,000 | Color 1250 – 6400
  • Up to 72 GB RAM
  • 12-bit depth
  • Full Phantom Features and connectivity
  • Programmable I/O – Assign and define camera signals

Product Specifications

AMETEK (Vision Research & Phantom Camera Technology)
Ametek Phantom VEO 640
