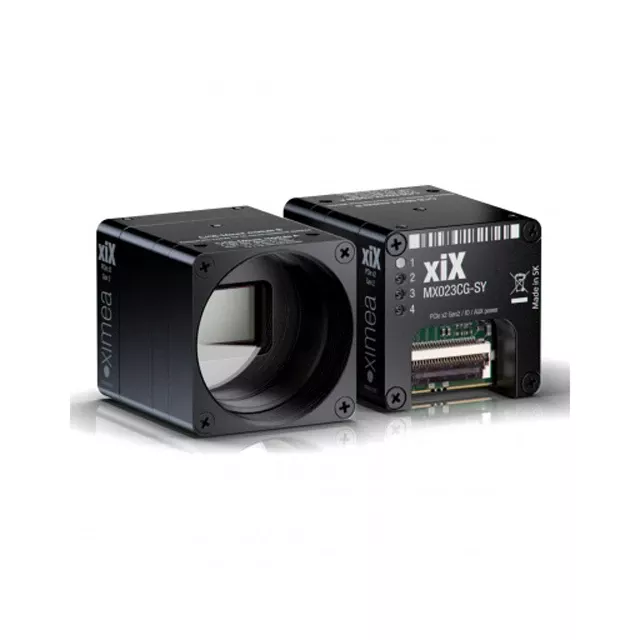

Ximea xiX PCIe MX031MG-SY


The Ximea xiX PCIe MX031MG-SY industrial camera is the backbone of the xiFLY platform. It is a small, lightweight camera with a flexible ribbon cable interface. Alternatively, it can be adapted to fiber optic cabling. The small board stack in this camera makes for fantastic flexibility in systems with tight spatial requirements. Together with the xiFLY accessories, The Ximea xiX PCIe MX031MG-SY camera drives performance in small spaces, from great distances, and at high speed. The real power of this camera is unleashed when combined with an xSwitch – a central component of the xiFLY platform: data streams from multiple cameras are multiplexed together into a single high bandwidth data interface for simple output (and routing) to the controlling computer. Add to that, the ability to replicate power and trigger signals through the switch allows for hassle-free synchronous data acquisition. The Ximea xiX PCIe MX031MG-SY industrial camera is one of the very few in the industry that can simply and effectively take advantage of the real speed offered by the sensors they contain. The PCIe interface brings the advantages of raw speed, low latency, and high robustness.

Ximea xiX PCIe MX031MG-SY Industrial Camera Features

  • Small dimensions: 26 x 26 x 31 mm, 30 grams
  • 3.1 Mpix Sony CMOS Pregius™ at 218 fps @8bit
  • Flat ribbon flex cable ideal for Multi-camera setup and Embedded vision
  • PCI Express Gen2 Compliant

What is xiX?

  • Smallest cameras featuring Sony Pregius™ – Compact with only 26 x 26 x 31 mm and 30 grams
  • Fast CMOS – Full high-speed potential from 2.3 Mpix at 166 Fps to 50 Mpix at 33 Fps
  • Cool economy – Low power consumption starting with under 3 Watt
  • Ideal for Embedded vision – Plethora of standard and OEM customizable switches or adapters
  • Lowest latency – Data interface complies with PCI Express reducing the latency to almost non-existent
  • All-around support – Windows, macOS, Linux, ARM, and NVIDIA Jetson embedded platforms
  • Adaptable potential – Available with flex cable connectors, parallel and perpendicular and Firefly
  • Software interfaces – GenICam / GenTL and highly optimized API / SDK for Image Processing
  • Connectivity and Synchronization – Programmable Opto-isolated input and output, 4 status LEDs
  • Lens control  EF-mount Interface allows remote control of aperture, focus, and image stabilization
  • Sensor variety – Interchangeable for Sony IMX287, IMX273, IMX249, IMX265, IMX264, IMX267, IMX304
  • Cost-efficient – Excellent value for the newest technologies

Ximea xiX PCIe MX031MG-SY Applications

  • Ultra-fast 3D scanning
  • Face recognition, FACS scanning, Eye Tracking, Body scanner, People counting
  • 360 Panorama (360° spherical, cyclorama imaging), Photogrammetry, Videogrammetry
  • Electronics, Photovoltaics, portable medical devices
  • Miniature and accurate robotic arms
  • Industrial and Factory Automation, Machine Vision
  • Broadcasting and Instant replays
  • Rapid process capturing, e.g. golf club swings, ping pong, baseball, tennis
  • High definition Motion capture, Cinematography, and Entertainment
  • Solar panel inspection, Semiconductor wafer scanning
  • Sports Automation & Motion Tracking: soccer, football, basketball, hockey
  • Alignment and Assembly, Stereo camera systems
  • VR and AR – Virtual and Augmented reality
  • Flat-panel display (FPD) inspection
  • HMC (Head-mounted camera)
  • 3D Mapping, GIS (Geographical Information Systems)
  • Autonomous self-driving vehicles, ADAS, Deep learning tasks
  • Defect detection, Print and Film scanning, Optical Image Stabilizer (OIS)
  • Persistent stadium and border high-end security
  • Printed circuit board (PCB) examination
  • Aerial or city/street mapping (UAV / UAS – drones)
  • Outdoor imaging – Wide-area motion imaging and surveillance
  • ideal for Lola (Low Latency audiovisual streaming system)
