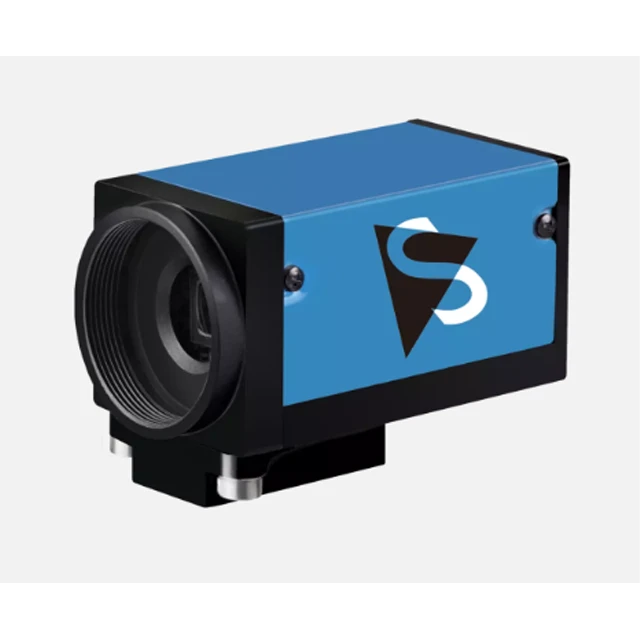

The Imaging Source Industrial 33 DMK 33GV024

Features

Sensitivity

0.015 lx
Dynamic range

8/12 bit
Video formats @ frame rate (maximum)

752×480 (0.4 MP) Y800 @ 100 fps | 752×480 (0.4 MP) Y16 @ 100 fps
IR cut filter

No
Sensor type

CMOS
Sensor specification

Aptina MT9V024
Shutter

Global
Format

1/3 inch
Resolution

752×480
Frame Rate

100 fps
Megapixel

0.4 MP
Lens mount

C/CS
Interface

GigE
Supply voltage

11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current consumption

approx 400 mA @ 12 VDC
Auto iris control

No
Trigger

Yes
I/Os

Yes
Dimensions

H: 29 mm, W:29 mm, L: 57 mm
Mass

65 g
Shutter

15 µs s to 1/4 s
Gain

0 dB to 11.76 dB
Temperature (operating)

-5 °C to 45 °C
Temperature (storage)

-20 °C to 60 °C
Humidity (operating)

20 % to 80 % (non-condensing)
Humidity (storage)

20 % to 95 % (non-condensing)
