JAI Spark Series SP-25000C-CXP4A

Highlights

The SP-25000C-CXP4A is a high performance industrial area scan camera providing 26-megapixel color images at up to 150 frames per second over a 4-lane CoaXPress 2.0 interface supporting full CXP-12 data rates. Its high resolution CMOS imager features 2.5-micron pixels for a compact 1.1-inch optical format supporting the use of smaller, lighter C-mount lenses.

Features

  • 26-megapixel color images at 150 fps over 4 CoaXPress lanes.
  • Compact 1/1.1-inch sensor with 2.5-micron square pixels.
  • C-mount lens format for smaller, lighter optics.
  • Global shutter CMOS imager for no motion-related distortion.
  • Single ROI and multi-ROI modes with up to 64 defined regions.
  • Lens control function for utilizing Birger Mount via RS-232C lens control commands.
  • Edge enhancer function, plus vertical and horizontal image flipping.
  • Image Sequencer with 128 user-definable indexes.
  • Automatic Level Control (ALC) for dynamic lighting conditions.
  • Four-channel CoaXPress v2.0 interface supporting up to 12.5 Gbps per lane over micro BNC connectors.
  • Can share processing across multiple PCs via the CoaXPress link sharing function.
  • Industrial grade performance with 80G shock and 10G vibration rating.

Product Specifications

JAI

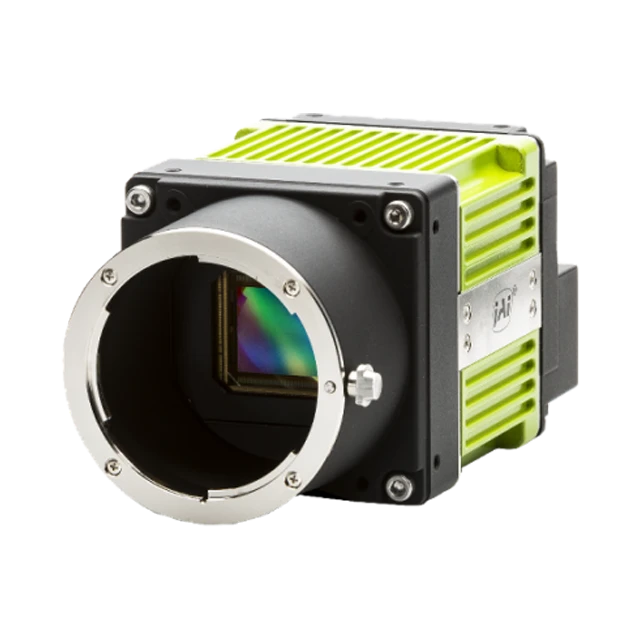

JAI Spark Series SP-25000C-CXP4A-Photo-1
