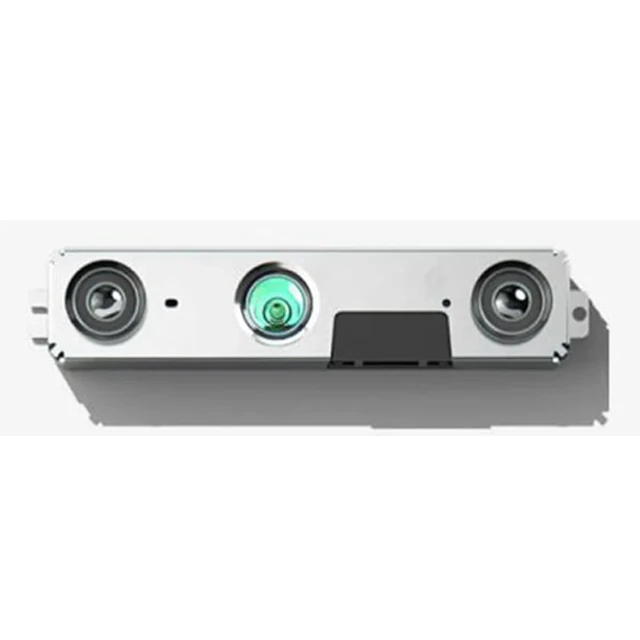

Intel RealSense Depth D450M


The Intel RealSense™ Depth Camera D450M is the fourth in the D400 series, designed from feedback and knowledge gained from Intel’s 10+ years of stereo camera development. The D450M is a module based on the D455 which extends the distance between the depth sensors to 95 mm, improving the depth error to less than 2% at 4 m. It also integrates an IMU to allow your application to refine its depth awareness in any situation where the camera moves. This allows improved environmental awareness for robotics and drones.

The D450M has the same specs as the D455 model, this product is a module.


  • Use environment: Indoor/Outdoor
  • Image sensor technology: Global Shutter
  • Ideal Range: .6 m to 6 m
  • Inertial measurement unit: Bosch BMI055
  • Depth technology: Active IR Stereo
  • Minimum Depth Distance (Min-Z) at Max Resolution: ~52 cm
  • Depth Accuracy: <2% at 4 m1
  • Depth Field of View (FOV): 87° × 58°
  • Depth output resolution: Up to 1280 × 720
  • Depth frame rate: Up to 90 fps

Product Specifications
