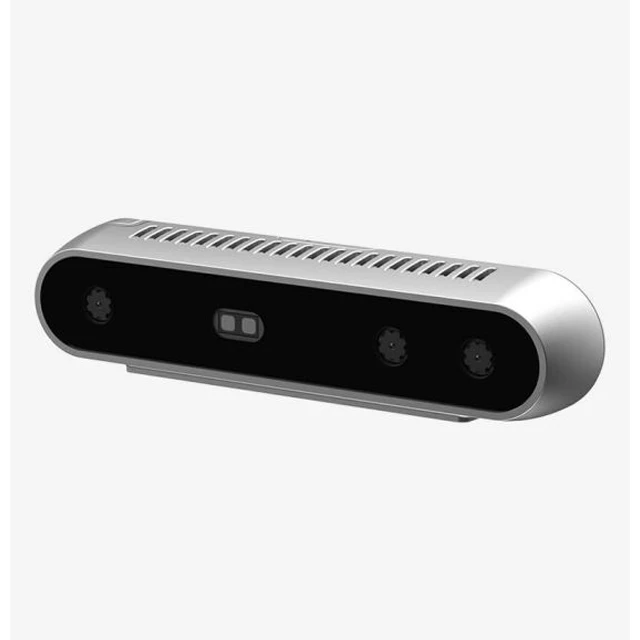

Intel RealSense Depth D415M

Highlights

The Intel RealSense™ Depth Module D415M is a lower-cost, yet highly capable depth camera, featuring a standard field of view well suited for high accuracy applications such as 3D scanning. With a rolling shutter on the depth sensor, the D415M offers our highest depth quality per degree. Featuring an integrated RGB sensor, the D415M is perfect for facial authentication, 3D scanning, or volumetric capture.

The D415M module has the same specs as a D415, this version is a module.

Features

• Use environment: Indoor/Outdoor
• Image sensor technology: Rolling Shutter
• Ideal range: .5 m to 3 m
• Depth technology: Active IR Stereo
• Minimum depth distance (Min-Z) at max resolution: ~45 cm
• Depth Accuracy: <2% at 2 m1
• Depth Field of View (FOV): 65° × 40°
• Depth output resolution: Up to 1280 × 720
• Depth frame rate: Up to 90 fps
