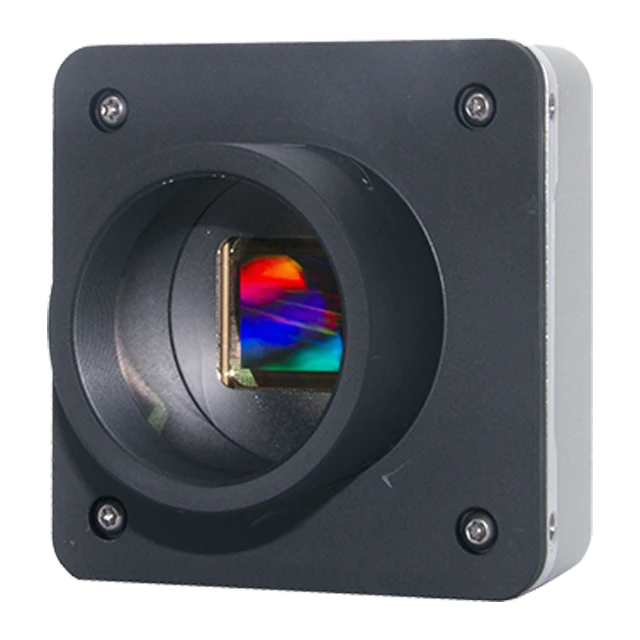

Adimec QUARTZ Series Q-12A180

The Adimec QUARTZ Series Q-12A180 CoaXPress camera brings 4096 by 3072 high quality pixels to the image for real time metrology tasks with a reliable high speed CoaXPress data interface. With 12 Megapixel resolution and 187 frames per second of measurement speed in the Q-12A180, you can improve the precision and the throughput of your system. The accuracy of the information is preserved for each and every image with Adimec’s True Accurate Imaging design and the CMOSIS CMV12000 CMOS global shutter sensor. The Adimec QUARTZ Series Q-12A180 also comes in a low power compact outline, providing you with optimal design freedom for integrating optics.

Q-12A180 Features

  • Defect Pixel Correction
  • Region of Interest
  • Programmable I/O
  • Image Flip
  • Frame Counter
  • Video LUT
  • Analog Sensor Gain
  • Digital Fine Gain
  • Automatic Black Level Control
  • FPN and ADC Column Calibrations
  • Non-Volatile Calibration Data Storage

Customization

  • All QUARTZ models are customizable to fit specific system outline and/or functionality requirements.
