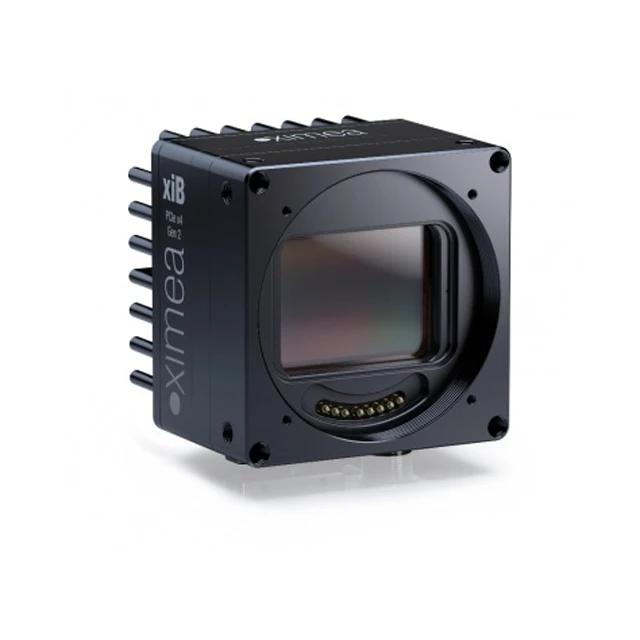

Ximea xiB CB500MG-CM
The Ximea xiB CB500MG-CM industrial camera excels in speed, resolution, and dynamic range, featuring a complete lineup of global shutter sensors. The uses of optical fiber cables allow distances between cameras and host computers up to 100m without a performance penalty and even 300m with reductions in frame rate. Put your Ximea xiB CB500MG-CM industrial camera where the action is, monitor, and record from a distance. A rugged, precision CNC milled aluminum alloy housing with industry-standard iPass connectors, multiple GPIO options, motorized lens functions, and an interface without the need for a frame grabbers make the Ximea xiB CB500MG-CM industrial camera the primary choice for the most demanding vision applications.
What is xiB?
- Fastest overall – Bandwidth from 20 Gbit/s to staggering 64 Gbit/s, real data throughput up to 7000 MB/s
- Modern components – High resolution from 12 Mpix to 65 Mpix and 3500 Fps high-speed sensors
- Versatile mini camera – Subtle 60 x 60 x 36 mm, 160 grams (1)
- Longest reach – Can work with optical cable at 300m distances
- Power-efficient – Low power consumption of mere 6 Watt (1)
- Cool – Minimal heat dissipation with additional Heatsink or Fan options
- Compatible – Support for Windows 7 and 10, Linux, macOS, ARM, NVIDIA Jetson modules
- Connectivity and Synchronization – 2/2 Isolated GPI/GPO, 4 bi-directional non-isolated GPIO
- Compliant – Data and control interface complies with PCI Express External Cabling Specifications
- Lens control – EF-mount Interface allows remote control of aperture, focus, and image stabilization
- Easy deployment – Range of various accessories and No need for frame grabbers
- Future potential – Highest speed by utilizing the full capability of PCIe x8 Gen3 interface
- Customizable – Possibility of Board level or Embedded versions and Near Infrared (NIR) sensors
Ximea xiB CB500MG-CM Features
- 50 Mpix mono CMOS camera with AMS CMOSIS CMV 50000
- PCIe speed of 20 Gbit/s allows 30 Fps @8 and 22 Fps at 12 bit
The Ximea xiB CB500MG-CM 4K camera is compact and highspeed making it great for flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium, and border security, wide-area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.
