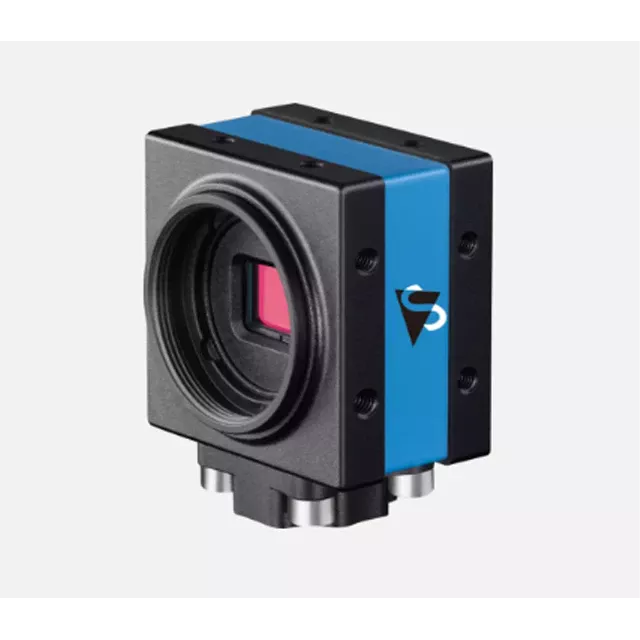

The Imaging Source Industrial 27 DFK 27AUP006

Features

Dynamic range

8/12 bit
Video formats @ frame rate (maximum)

2,592×1,944 (5 MP) Y800 @ 15 fps | 2,592×1,944 (5 MP) Y16 @ 7.5 fps | 2,592×1,944 (5 MP) RGB32 @ 15 fps
IR cut filter

Yes
Sensor type

CMOS
Sensor specification

ON Semiconductor MT9P006
Shutter

Rolling
Format

1/1.25 inch
Resolution

2,592×1,944
Frame Rate

15 fps
Megapixel

5 MP
Lens mount

C/CS
Interface

USB 3.0
Supply voltage

4.5 VDC to 5.5 VDC
Current consumption

approx 250 mA @ 5 VDC
Auto iris control

No
Trigger

No
I/Os

No
Dimensions

H: 36 mm, W: 36 mm, L: 25 mm
Mass

70 g
Shutter

1/20,000 s to 1/4 s
Gain

0 dB to 12 dB
White balance

-2 dB to 6 dB
Temperature (operating)

-5 °C to 45 °C
Temperature (storage)

-20 °C to 60 °C
Humidity (operating)

20 % to 80 % (non-condensing)
Humidity (storage)

20 % to 95 % (non-condensing)
