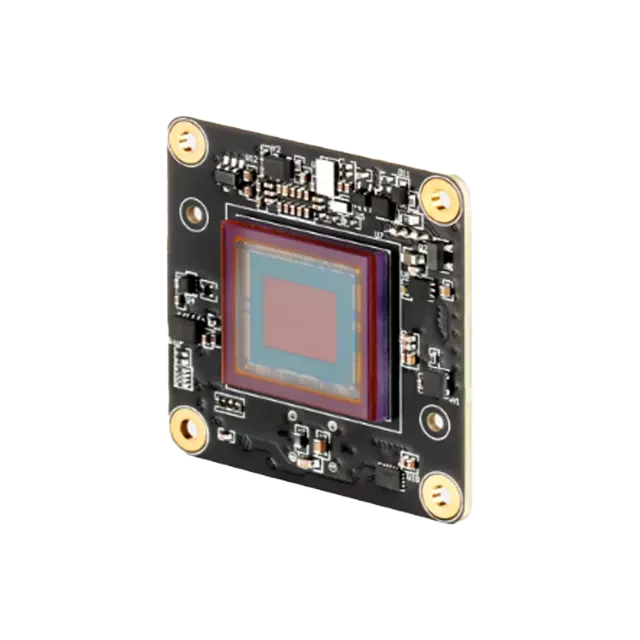

The Imaging Source Board DFM 37UX250-ML

Features

2/3 inch Sony CMOS Pregius sensor (IMX250LQR)
2,448×2,048 (5 MP), up to 75 fps
Global shutter
Trigger and I/O inputs
Manufactured by The Imaging Source
Windows and Linux software included

Product Specifications

Dynamic range

12 bit
Resolution

2,448×2,048
Megapixel

5 MP
Frame Rate

75 fps
Video formats @ frame rate (maximum)

8-Bit Bayer (RG), 16-Bit Bayer (RG)
IR cut filter

No
Sensor type

CMOS Pregius
Sensor specification

Sony IMX250LQR
Shutter

Global
Format

2/3 inch
Pixel Size

H: 3.45 µm, V: 3.45 µm
Lens mount

M12x0.5
Interface

USB 3.1
Supply voltage

4.75 VDC to 5.25 VDC
Current consumption

approx 410 mA @ 5 VDC
Auto iris control

No
Trigger

Yes
I/Os

Yes
Dimensions

H: 36 mm, W: 36 mm, L: 15 mm
Mass

7 g
Shutter

20 µs to 4 s
Temperature (operating)

-5 °C to 45 °C
Temperature (storage)

-20 °C to 60 °C
Humidity (operating)

20 % to 80 % (non-condensing)
Humidity (storage)

20 % to 95 % (non-condensing)
