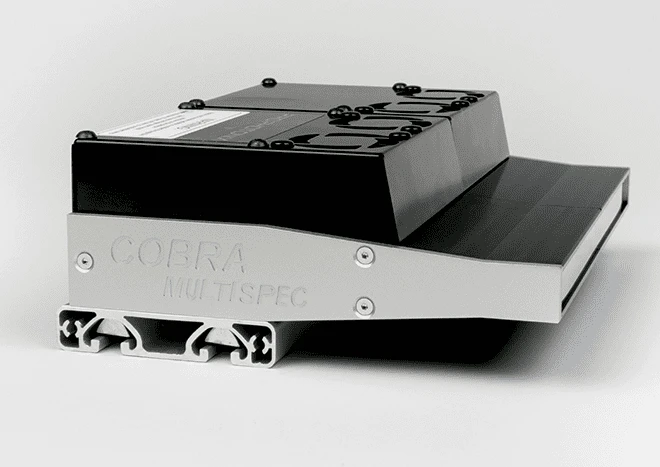

Prophotonix COBRA MultiSpec

Highlights

The Prophotonix COBRA MultiSpec is a tunable, MultiSpectral LED Line Light with up to 12 wavelengths. The COBRA™ MultiSpec multispectral LED line light has been designed to deliver tunable multispectral light allowing you to optimize image acquisition. Offering discrete control of up to twelve wavelengths from 365 to 1650nm via an intuitive graphical user interface, you can maximize contrast by choosing the optimum spectral profile and providing more intensity at specific wavelengths to suit your application needs. The Prophotonix COBRA MultiSpec delivers multispectral tunable illumination allowing users to optimize the spectrum to maximize contrast, compensate for camera sensitivity, and deliver clearer, higher resolution images for increased accuracy and speed. Precise control of the light via its user-friendly GUI allows system designers to easily fine-tune the performance of their system. Discrete control of each wavelength allows users to select the optimum wavelength balancing and relative intensities specific to the application needs. RGB-IR (855nm) and RGB-White (3500K) COBRA MultiSpec line lights are now available as standard, offering ideal solutions for a wide variety of multispectral and hyperspectral applications including food sorting and currency inspection. Custom lights of up to 12 wavelengths from 365 – 1650nm can also be delivered.

UV, Visible & IR wavelengths are available along with a wide range of optical options to ensure the optimum illumination for your application. The Prophotonix COBRA MultiSpec is available in wavelengths from 365 – 1500nm and available in configurations from two to twelve wavelengths in a compact form factor. To enable rapid data acquisition and analysis, COBRA MultiSpec’s exceptional strobe capability allows multispectral strobe patterns to be configured, and up to four optically independent strobe lines pulsed either simultaneously or sequentially with a combined delay and response time of less than one microsecond (1μs). COBRA MultiSpec is built on the established, compact COBRA Slim platform and utilizes Chip-on-Board LED technology to ensure extreme brightness and excellent uniformity. In addition, COBRA MultiSpec offers field adjustable optics allowing users to select the optimum lens position for its application. COBRA MultiSpec is modular and is available in any length up to 5 meters.

Prophotonix COBRA MultiSpec Features

  • RGB-IR and RGB-White as well as custom options
  • Chip-On-Board: extreme brightness and high uniformity
  • Modular: available in any length up to 5 meters
  • Four independent strobe lines
  • On-board Ethernet control
  • Input Power Monitoring

Prophotonix COBRA MultiSpec Applications

  • Multispectral Imaging
  • Hyperspectral Imaging
  • Print inspection
  • Food Sorting
  • Recycling Sorting
  • Currency inspection
