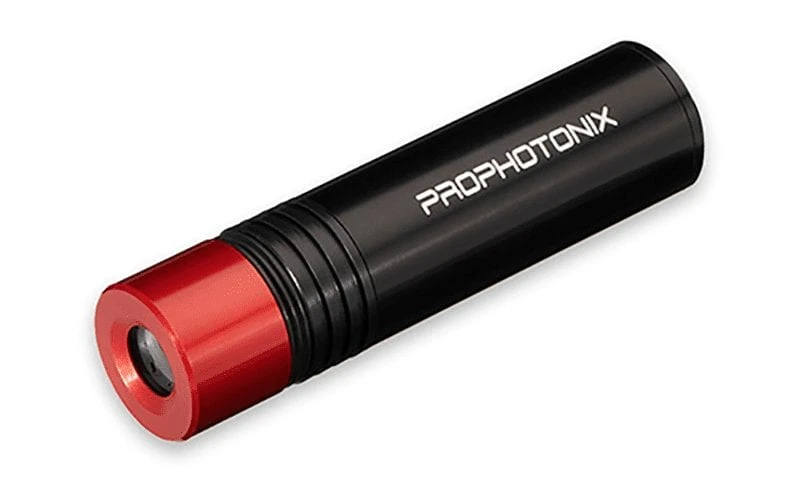

Prophotonix 3D PRO Laser

Highlights

The Prophotonix 3D PRO Laser module has been designed specifically for the demanding requirements of machine vision applications. The laser modules have a compact cylindrical form factor based on industry-standard dimensions for easy integration into existing applications. The Prophotonix  3D PRO Laser module is 19mm in diameter, compatible with the majority of
existing Machine Vision systems. The laser is available with a customer-specified fixed focus. 3D PRO lasers offer excellent uniformity with line widths down to 30μm at 120mm which is ideal for inspection applications that demand a high degree of accuracy. They are available with output powers up to 100 mW and fan angles between 10° and 90°. Wavelengths range from 520nm to 850nm and include 635nm and 660nm. Electronic options consist of TTL modulation up to 100kHz and Analogue power control for intensity adjustment. The Prophotonix 3D PRO Laser module range is available in a wide variety of line and diffractive optic options.

Prophotonix 3D PRO Laser Features

  • Compact, Cylindrical Form Factor for Easy Mounting
  • Excellent Uniformity
  • Line Width of 30μm at 120mm
  • Available Options include: Wavelengths, Power Levels, Fan Angles, Intensity Control & Modulation
  • Wavelengths: UV (405nm), Blue or blue-violet (450-500nm), Green (510-530nm), Red (630-740nm), IR (>780nm)

Applications

  • 3D Measurement
  • Dimensional Scanning
  • High Precision Alignment, Pointing, Positioning
  • Automated Inspection

Uniformity

The Prophotonix 3D PRO Laser Modules can deliver a range of uniformities dependent on customer requirements. The 3D PRO Laser achieves a standard uniformity ±22.5%. A higher uniformity option is available with uniformity of ±12.5%.

Product Specifications
