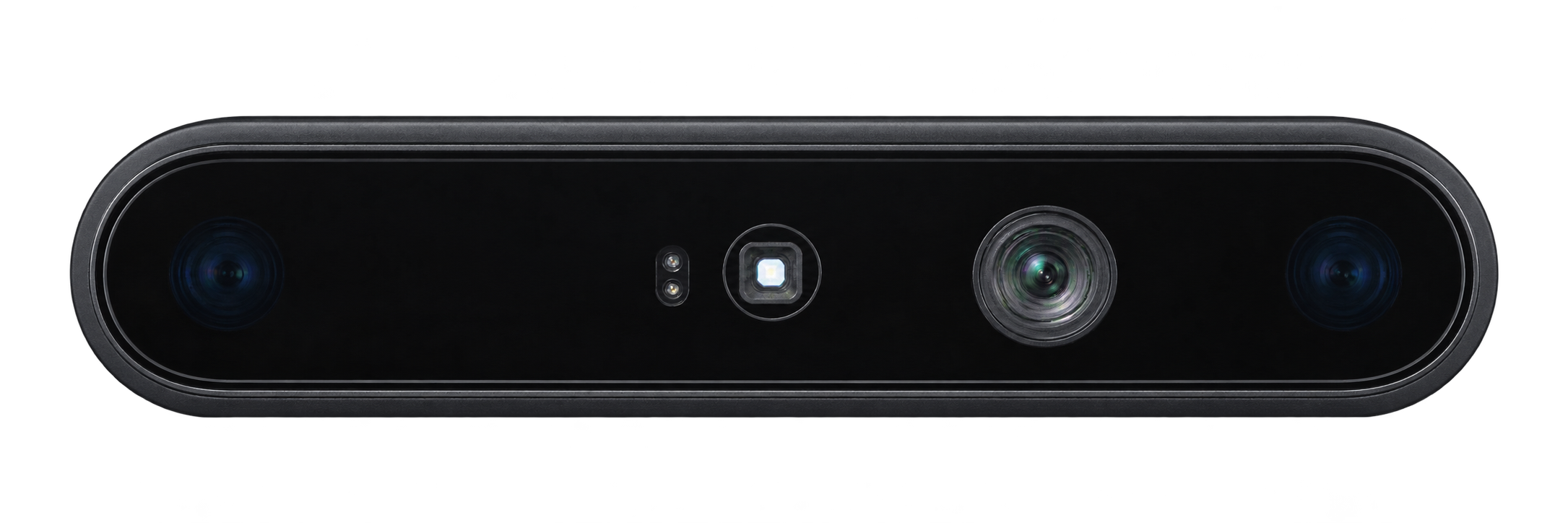

Orbbec Gemini 2 XL Stereo Vision Camera

Orbbec Gemini 2 XL is a long-range stereo vision camera designed for robotics, logistics, dimensioning, mapping, and AI vision applications. It combines infrared-enhanced stereo depth sensing with Orbbec’s OBox computing module, global-shutter imaging, an integrated IMU, and Gigabit Ethernet with PoE+ connectivity.

The Gemini 2 XL provides depth resolution up to 1280 × 800 at 10 fps, a 0.40 m to 20 m+ depth range, and an optimal operating range of 0.40 m to 10 m. Its 100 mm stereo baseline, wide-angle imaging, multi-camera synchronization, and outdoor-capable depth processing support reliable 3D perception across large work areas and challenging lighting conditions.

Long-Range Stereo Vision
— Provides depth data from 0.40 to 20 m+ with an optimal operating range of 0.40 to 10 m.

OBox Computing Module
— Dedicated external processing runs advanced depth-enhancement algorithms for robust RGB-D output.

Global Shutter Imaging
— Global-shutter depth and RGB sensors reduce motion distortion in robotic and automation applications.

Gigabit Ethernet & PoE+
— Supports high-speed Ethernet data and IEEE 802.3at PoE+ for simplified installation over a single network cable.

Wide Scene Coverage
— A wide depth field of view captures large areas for navigation, mapping, dimensioning, and monitoring.

Multi-Camera Synchronization
— An 8-pin hardware synchronization port supports coordinated multi-camera 3D vision systems.
