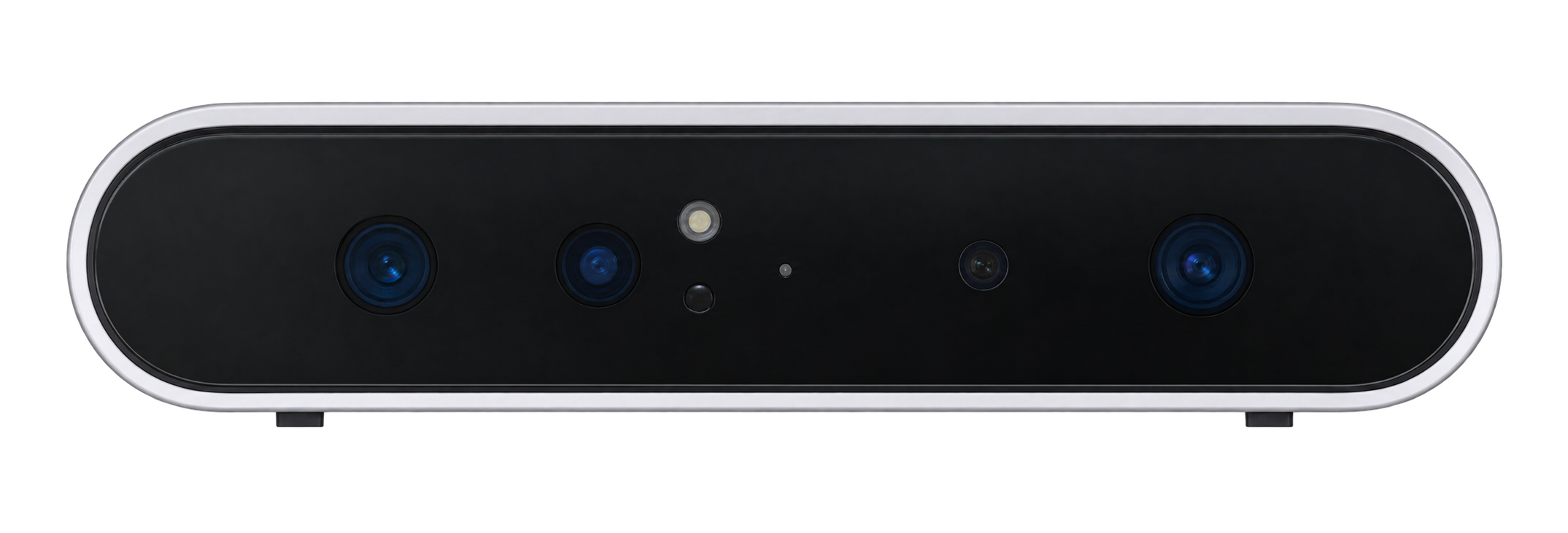

Orbbec Astra 2 Structured Light 3D Camera

Orbbec Astra 2 is a high-resolution structured light 3D camera designed for precise indoor depth sensing, measurement, scanning, and interactive vision applications. It combines an 850 nm structured light system with Orbbec’s MX6600 ASIC, integrated 6 DoF IMU, and multi-camera synchronization.

The Astra 2 provides depth resolution up to 1600 × 1200 at 30 fps, a 0.6 m to 8 m depth range, and an optimal operating range of 0.6 m to 5 m. With spatial precision of ≤0.16% at 1 m, Full HD RGB imaging, and onboard depth processing, it is well suited to detailed indoor 3D measurement and reconstruction.

High-Resolution Structured Light
— Provides dense depth output up to 1600 × 1200 at 30 fps for detailed indoor 3D capture.

High Spatial Precision
— Delivers typical spatial precision of ≤0.16% at 1 m and ≤0.3% at 2 m.

MX6600 Depth Processing
— Integrated Orbbec ASIC processes high-quality depth data directly on the camera.

Full HD RGB Imaging
— Captures color images up to 1920 × 1080 at 30 fps for synchronized RGB-D applications.

Integrated 6 DoF IMU
— Provides synchronized motion and orientation information for tracking, mapping, and interactive vision.

Multi-Camera Synchronization
— An 8-pin hardware synchronization interface supports coordinated multi-camera installations for expanded coverage.
