Metaphase Technologies MB-CO2DL6

Highlights

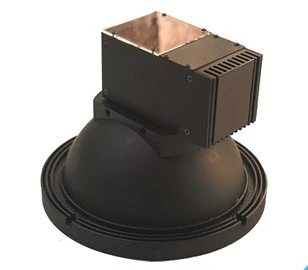

The Metaphase Technologies MB-CO2DL6 dome light is ideal for providing even illumination of curved, specular, or rough surfaces. Coaxial lights provide diffused on-axis illumination. Using the coaxial light with a dome light allows for complete, uniform, and diffused lighting by filling the void created by the dome’s camera viewing port. The Metaphase CODL (Co-Axial Dome Light) conveniently packages these units together to make integration of the DAL with the Dome light simple and easy. The CODL is available with a wide variety of LED colors such as white, red, green, blue, IR, UV, and RGB with independent color control. The Dome and Coaxial portions of the MB-CODL have separate intensity control lines.

Metaphase Technologies MB-CO2DL6 Features

• High intensity and uniform, non-directional illumination across entire lighting hemisphere for area scan
• LED heat management for consistent performance
• Ideal for highly reflective surfaces and textured or topographic objects
• Provides complete illumination using a range of direct and indirect light, minimizing shadows and glare
• Enclosed workspace blocks interference of ambient light
• Optical grade reflector coating reflects 99.9% of light for optimum diffused output
• Built-in Constant Current Driver with 0 – 10VDC intensity control
• Compatible with DDC-3 and ILD-35 Dimmers

Metaphase Technologies MB-CO2DL6 Applications

The MB-CO2DL6 can be used in applications such as,

• An application requiring light and camera to on-axis and/or the height of the product varies.
• High-speed bar reading
• PCB inspection
• Machine Vision & Automation
• Robotic Inspection

Available Wavelengths
