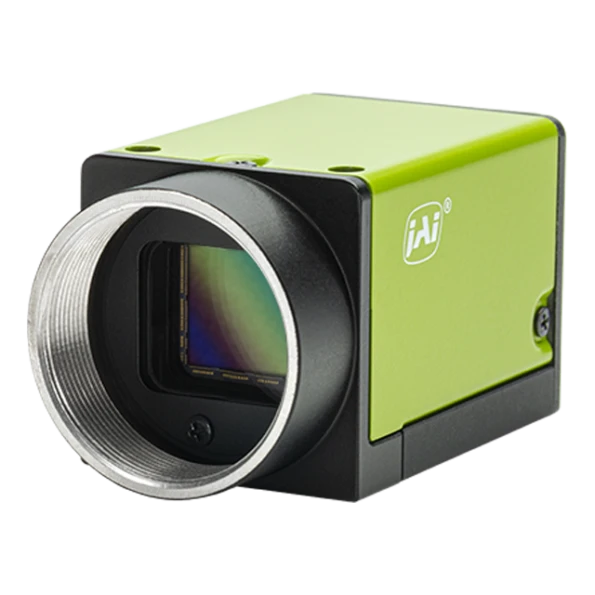

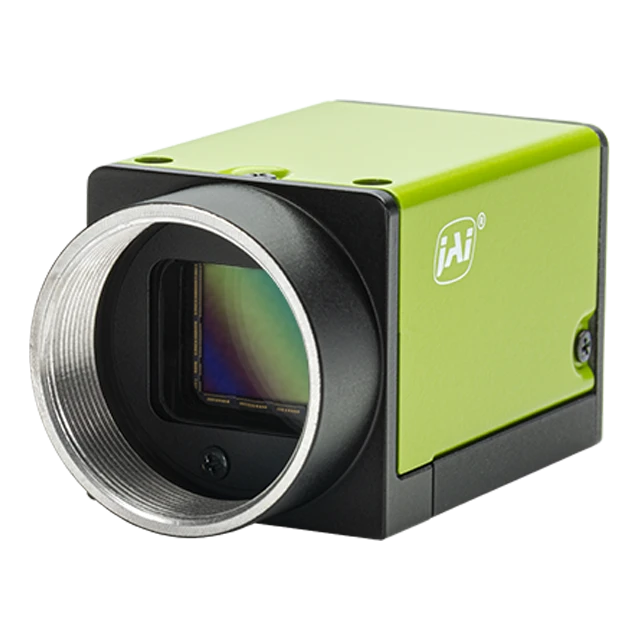

JAI Go-X Series GOX-2402C-USB

Highlights

The JAI Go-X Series GOX-2402C-USB is a small, attractively-priced industrial area scan camera offering a blend of features, image quality, and industrial-grade reliability perfect for the next generation of machine vision systems. It weighs only 62 grams and delivers 2.3-megapixel Bayer Color output at up to 162 fps over a USB3 Vision interface. The GOX-2402C-USB includes a robust set of capabilities like region-of-interest (ROI), image flipping and mirroring, 2×2 decimation, 8/10/12-bit output, blemish compensation, and shading correction – plus, advanced features like two different sequencer modes and an intelligent, user-customizable auto-exposure function (ALC).

The Go-X Series

The Go-X Series offers compact, attractively-priced industrial area scan cameras with a blend of features, image quality, and industrial-grade reliability that is in high demand for the next generation of machine vision systems. The Go-X Series incorporates the most popular Sony Pregius CMOS sensors with resolutions ranging from 2.3 to 12.4 megapixels and a choice of USB3 Vision or GigE Vision interfaces. With industrial-grade shock and vibration ratings (80G/10G) and excellent thermal dissipation, they are designed to keep critical inspection systems running 24/7/365.

JAI Go-X Series GOX-2402C-USB Features

  • 2.3-megapixel camera with 3.45-micron pixels and 1/2.3” optical format.
  • Low-noise Sony Pregius IMX392 CMOS image sensor with Bayer Color output.
  • USB3 Vision interface provides high bandwidth and easy plug-and-play setup.
  • Can be powered over the interface or from an external power supply via a 6-pin Hirose connector.
  • Small and lightweight to mount easily on robotic arms, UAVs, and any other machine vision systems where motion or portability are vital.
  • Three sets of mounting holes with 20 mm, 21 mm, and 12 mm spacing to fit most existing installations with no re-tooling required.
  • Industrial grade performance with ratings of 80G shock, 10G vibration, plus excellent thermal dissipation.
  • Full six-year warranty
  • Free SDK supporting Windows, Linux, and Linux for ARM embedded system development.
