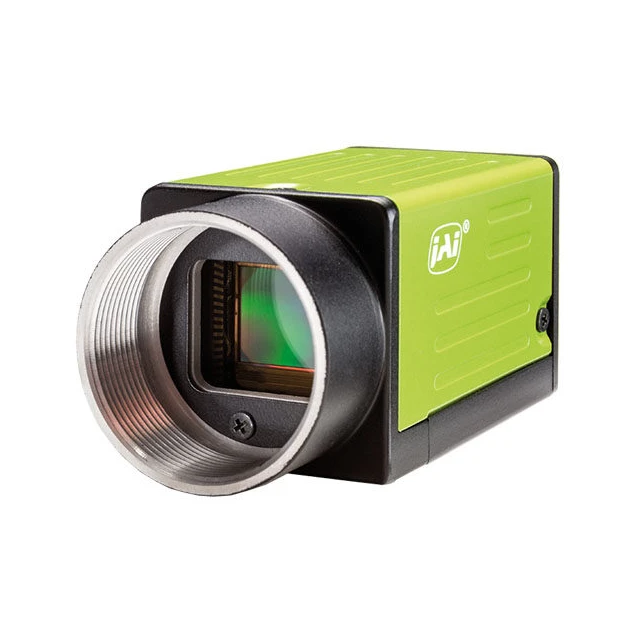

JAI Go Series Polarized Area Scan GO-5100MP-PGE

Highlights:

JAI provides a wide selection of single-sensor monochrome area scan cameras with resolutions ranging from 2.35 to 45 megapixels. Cameras are built around state-of-the-art sensor technology including the latest CMOS global shutter imagers.All cameras are designed to perform in tough environments to withstand operating conditions with high vibration effects (up to 10G) and high shock occurrence (up to 80G). This classifies them among the best in relation to industrial reliability and durability.

Product Description:

The GO-5100MP-PGE is a compact industrial polarization area scan camera built around Sony’s IMX250MZR polarized CMOS sensor. It features 5.1 MP resolution, a frame rate of 22 fps and an innovative 4-way polarizing wire-grid design creating a range of new imaging possibilities in industrial machine vision, traffic imaging and surveillance.

Image Sensor with Polarization Capabilities: Each image pixel incorporates one of four separate polarizing nano wire grids angled at 0°, 45°, 90°, and 135° arranged in a regular pattern across the sensor. Thus, each block of four pixels can be used as a calculation block to determine the angle and intensity of light in a scene.

Advanced In-Camera Processing Features: In-camera processing algorithms calculate polarization angle (AoLP) and percentage of total light that is polarized (DoLP) so that host resources can be devoted to other application processing tasks.

GigE Vision Interface: The GO-5100MP-PGE is equipped with a standard GigE Vision interface. It can provide full resolution 8-bit output at 22 frames per second over cable lengths up to 100 meters. 10-bit and 12-bit output is also supported.

Features:

  • 5.1-megapixel camera featuring Sony IMX250MZR CMOS polarized sensor.
  • Four different polarizing nano wire grids (0°, 45°, 90°, 135°) applied to each 4-pixel block.
  • Outputs raw 5.1 megapixel mosaic image for host-based processing.
  • Built-in functions to calculate AoLP (polarization angle) and DoLP (percentage of total light that is polarized).
  • 8, 10, or 12-bit monochrome output.
  • Compact size and smart design.
  • GigE Vision interface for plug-and-play convenience and long cable lengths.
  • ROI mode for flexible windowing and use of smaller optics.
  • Industrial grade performance with 80G shock, 10G vibration, and over 150,000 hrs. MTBF ratings.
