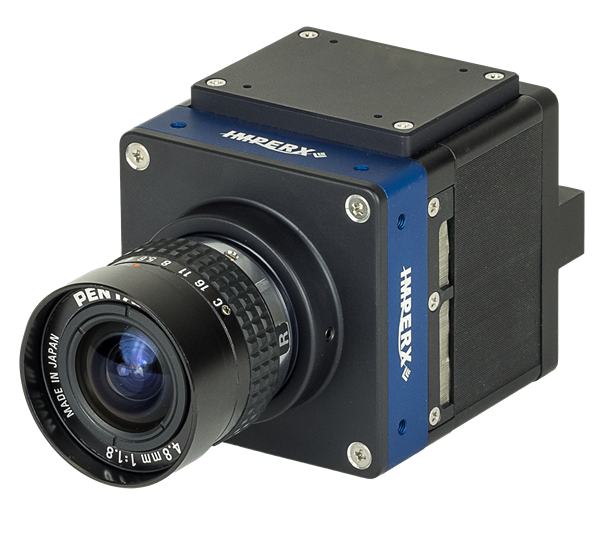

Imperx Puma POE-P2520I-T VIS-SWIR Camera

Highlights

The Imperx Puma POE-P2520I-T is a thermoelectrically cooled 5.32 MP VIS-SWIR CMOS area scan camera designed for imaging across visible and short-wave infrared wavelengths. Its Sony SenSWIR IMX992 global-shutter sensor provides a native resolution of 2592 × 2056 pixels, spectral coverage from 400 nm to 1700 nm, and acquisition at up to 22.5 frames per second.

GigE Vision connectivity with Power over Ethernet supports camera power, control, and image transmission through a network connection. Built-in thermoelectric cooling stabilizes the image-sensor temperature, while automatic forced-air cooling improves TEC efficiency for long-exposure imaging and precision measurement applications.

Features

• 5.32 MP resolution with a native image size of 2592 × 2056 pixels
• Sony SenSWIR IMX992 sensor with global-shutter CMOS technology
• 400–1700 nm spectral coverage for visible and short-wave infrared imaging
• Up to 22.5 fps at the camera’s native resolution
• GigE Vision connectivity for network-based image transmission and camera control
• Power over Ethernet support for simplified system integration
• 1/1.4-inch optical format for detailed VIS-SWIR image acquisition
• Thermoelectric sensor cooling for stabilized image-sensor temperature
• Automatic forced-air cooling that cycles on and off as required
• Flexible lens mounting with C-mount standard and optional F-mount, M42, and Canon EF configurations
• Raw-data access without mandatory image corrections
• Automatic exposure and gain for changing imaging conditions
• Multiple LUTs with user-selectable image-correction functions
• Trigger and strobe support for synchronized image acquisition

Dual Use Classification
This product is classified under ECCN/AL: 6A003.b.4.a and may be subject to export-control restrictions.

Applications

• Electronic board inspection
• Solar-cell inspection
• Semiconductor and integrated-circuit inspection
• Material identification and sorting
• Foreign-substance contamination detection
• Opaque-container content and fill-level inspection
• Water and oil contamination and leak detection
• Agricultural and food-condition monitoring
• Coating inspection and process control
• Surveillance imaging
• Anti-counterfeiting inspection
• Process quality control
