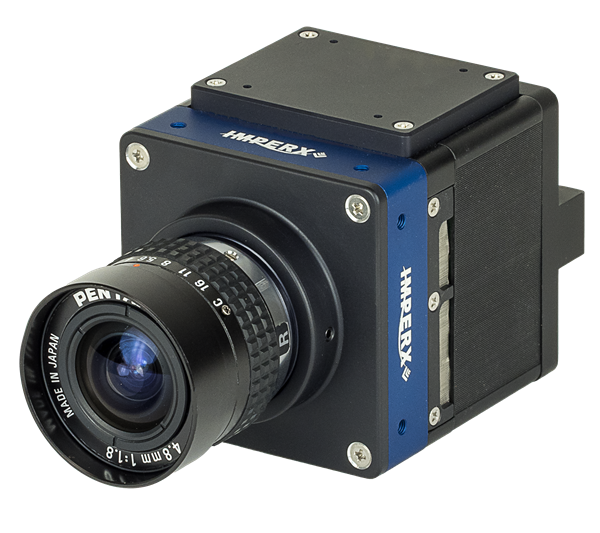

Imperx Puma POE-P0620I-T VIS-SWIR Camera
Highlights
The Imperx Puma POE-P0620I-T is a thermoelectrically cooled 0.33 MP VIS-SWIR CMOS area scan camera designed for imaging across visible and short-wave infrared wavelengths. Its Sony SenSWIR IMX991 global-shutter sensor provides a native resolution of 656 × 520 pixels, spectral coverage from 400 nm to 1700 nm, and acquisition at up to 137 frames per second.
GigE Vision connectivity with Power over Ethernet supports camera power, control, and image transmission through a network connection. A built-in thermoelectric cooling module stabilizes sensor temperature, while forced-air cooling increases TEC efficiency for long-exposure imaging and precision metrology applications.
Features
- 0.33 MP resolution with a native image size of 656 × 520 pixels
- Sony SenSWIR IMX991 sensor with global-shutter CMOS technology
- 400–1700 nm spectral coverage for visible and short-wave infrared imaging
- Up to 137 fps at the camera’s native resolution
- GigE Vision connectivity for network-based image transmission and camera control
- Power over Ethernet support for streamlined camera integration
- 1/4-inch optical format for compact VIS-SWIR imaging systems
- Thermoelectric sensor cooling for stabilized sensor temperature
- Forced-air cooling that automatically cycles as needed
- Flexible lens mounting with C-mount standard and optional F-mount, M42, and Canon EF configurations
- Raw-data access without mandatory image corrections
- Automatic exposure and gain for changing imaging conditions
- Multiple LUTs with user-selectable image corrections
- Trigger and strobe support for synchronized image acquisition
Dual Use Classification
This product is classified under ECCN/AL: 6A003.b.4.a and may be subject to export-control restrictions.
Applications
- Electronic board inspection
- Solar-cell inspection
- Semiconductor and integrated-circuit inspection
- Material identification and sorting
- Foreign-substance contamination detection
- Opaque-container content and fill-level inspection
- Water and oil contamination detection
- Agricultural and food-condition monitoring
- Coating inspection and process control
- Surveillance and low-light imaging
- Anti-counterfeiting inspection
- Process quality control
Product Specifications
