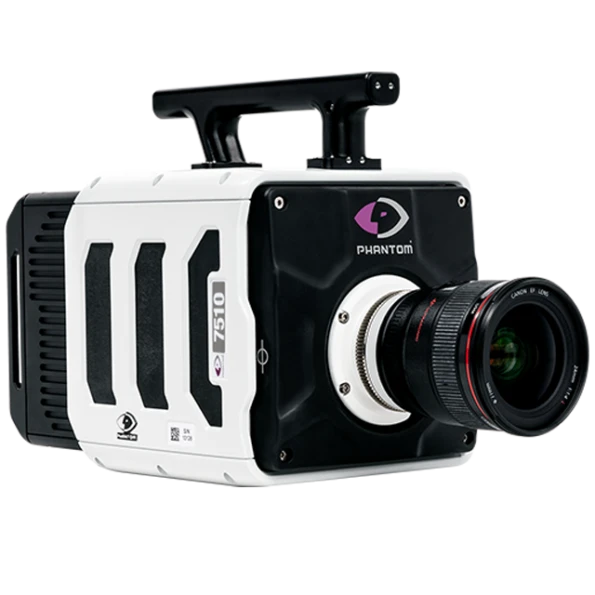

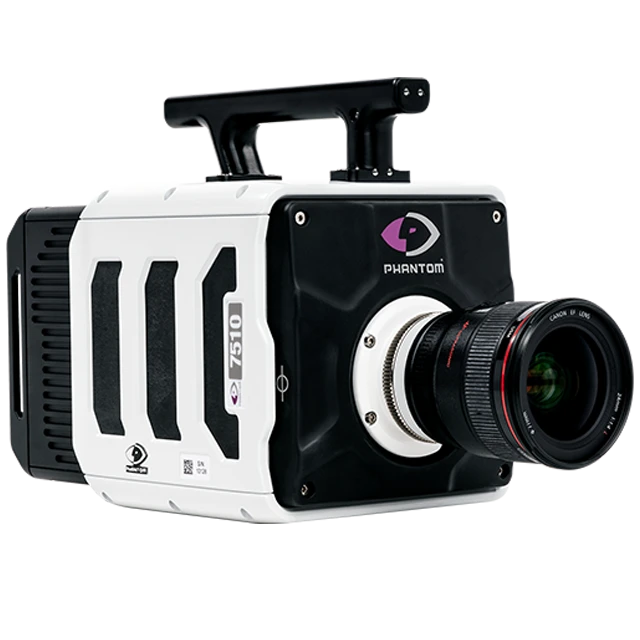

Ametek Phantom TMX 7510


The Phantom TMX 7510 is the world’s first high-speed camera to utilize back side illumination. Implementing this technology has allowed Vision Research engineers to develop a custom sensor capable of unprecedented speeds without sacrificing the image quality that Phantom cameras are known for.

BSI technology provides increased processing efficiency, allowing TMX cameras to maintain their high throughput levels even as frame rates increase. The TMX 7510 has 75 Gigapixel throughput which can provide over 76,000 fps at a full 1 Mpx resolution of 1280 x 800. At reduced resolutions the camera will record at over 770,000 fps in standard mode and up to 1.75M fps and 95ns in with the FAST mode.


  • 76,000 fps at 1280 x 800
  • Exposure Index: Mono 40,000 – 200,000 D | Color 12,500 – 64,000 D
  • Up to 512GB RAM
  • Binning Mode for added flexibility
  • 18.5 micron pixel
  • 12-bit depth
  • Side mounting
  • Full Phantom Features and connectivity
  • Programmable I/O – Assign and define camera signals
