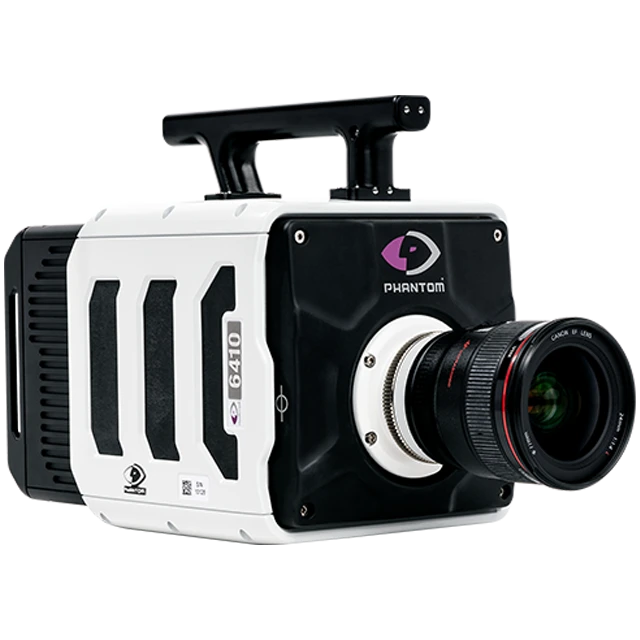

Ametek Phantom TMX 6410


The Phantom TMX 6410 is designed for extreme high-speed situations. The back side illuminated (BSI) high-speed CMOS sensor it utilizes delivers the same quality images Phantom Cameras are known for.

The Phantom TMX 6410 utilizes a back side illuminated CMOS sensor designed for high-speed imaging. The 64 Gigapixel throughput allows for extreme frame rate speeds that are capable of delivering up to 1.5M fps with a 95ns minimum exposure time with our FAST mode.


  • 65,940 fps at 1280 x 800
  • Exposure Index: Mono 40,000 – 200,000 D | Color 12,500 – 62,500 D
  • Up to 512GB RAM
  • Binning Mode for added flexibility
  • 18.5 micron pixel
  • 12-bit depth
  • CineMag V compatibility
  • Full Phantom Features and connectivity
  • Programmable I/O – Assign and define camera signals
