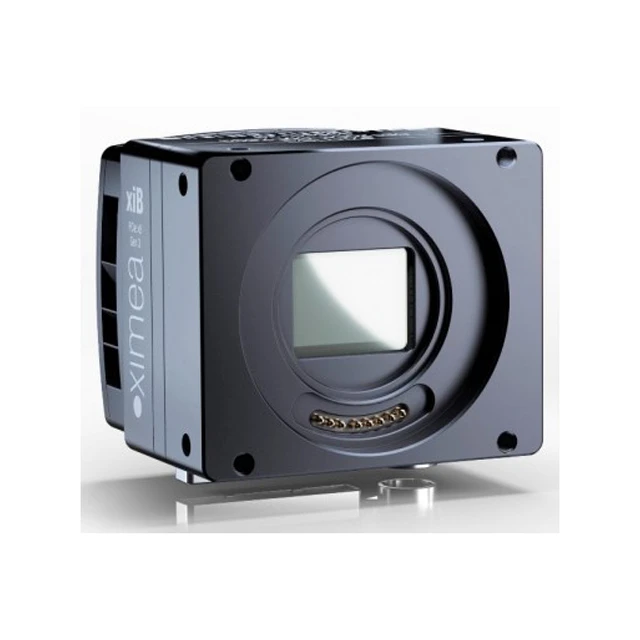

Ximea xiB-64 CB160CG-LX-X8G3

Highlights

The Ximea xiB-64 CB160CG-LX-X8G3 industrial camera is the fastest streaming camera with the lowest latency. Modern CMOS and sCMOS sensors are getting faster and faster, outstripping the capability of most interfaces to keep up. The Ximea xiB-64 CB160CG-LX-X8G3 industrial camera uses PCIe Generation 3 with 8 lanes for a mindboggling 64 Gbps! Enough to transmit 1 Mpix resolution uncompressed with more than 3,500 fps or equivalent to over 18 USB3 real-world data streams. The Ximea xiB-64 CB160CG-LX-X8G3 industrial camera does not suffer memory limitations in the same manner as traditional high-speed cameras, whose memory is internal to the camera. The camera is merely an endpoint in the PCIe architecture of the host computer, which has virtually no memory limitations. Data arrival is nearly instantaneous and available to the CPU/GPU for processing or storage with little overhead.

What is xiB?

  • Fastest overall – Bandwidth from 20 Gbit/s to staggering 64 Gbit/s, real data throughput up to 7000 MB/s
  • Modern components – High resolution from 12 Mpix to 65 Mpix and 3500 Fps high-speed sensors
  • Versatile mini camera – Subtle 60 x 60 x 36 mm, 160 grams (1)
  • Longest reach – Can work with optical cable at 300m distances
  • Power-efficient – Low power consumption of mere 6 Watt (1)
  • Cool – Minimal heat dissipation with additional Heatsink or Fan options
  • Compatible – Support for Windows 7 and 10, Linux, macOS, ARM, NVIDIA Jetson modules
  • Connectivity and Synchronization – 2/2 Isolated GPI/GPO, 4 bi-directional non-isolated GPIO
  • Compliant – Data and control interface complies with PCI Express External Cabling Specifications
  • Lens control – EF-mount Interface allows remote control of aperture, focus, and image stabilization
  • Easy deployment – Range of various accessories and No need for frame grabbers
  • Future potential – Highest speed by utilizing the full capability of PCIe x8 Gen3 interface
  • Customizable – Possibility of Board level or Embedded versions and Near Infrared (NIR) sensors

Ximea xiB-64 CB160CG-LX-X8G3 Features

  • 16 Mpix Color CMOS camera with Luxima LUX160
  • PCIe Gen3 speed of 64 Gbit/s allows more than 300 Fps at 10 bit

Applications

The Ximea xiB-64 CB160CG-LX-X8G3 is a high speed and compact making it perfect for applications such as Vehicle Impact, Airbag Deployment, and Safety Restraints Testing, Digital Image Correlation (DIC), Projectile, Explosives, Ballistics, Combustion, and Missile Launch Tracking, Fluid and Flow Visualization, Sports Broadcasting, Commercial Film, Television and Studio Production, Fluidics and Particle Image Velocimetry (PIV), Flat panel inspection (FPD), printed circuit board (PCB) examination and more.
