TRU-Vu Monitors VMTR-15C-24

Highlights

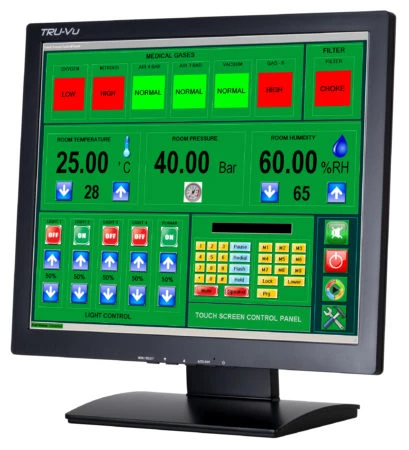

The TRU-Vu Monitors VMTR-15C-24 15 inch touch screen monitor is available with 5-Wire Resistive or Projected Capacitive touch screen technology.  The image quality is exceptionally clear and bright; the contact activation point is extremely accurate and features a USB touch interface.  The TRU-Vu Monitors VMTR-15C-24 offers a 1024 x 768 resolution and a 4:3 aspect ratio. This LCD Monitor is ideal for use with analog cameras, BNC cameras, and many legacy machine vision systems alike.  The TRU-Vu Monitors VMTR-15C-24 is built with true industrial-grade components for long-term reliability. Receiving TRU-Tuff treatment includes RTV silicone on all connections and critical components, all wires are dressed, tie-wrapped, and secured, finally ThreadLocks are applied to all screws to ensure they remain secured. Most importantly, this results in a rugged, dependable LCD monitor you can rely on. The VMTR-15C-24 can operate on  12-24VDC or 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Brick and within a +32° to 149° F temperature range.

TRU-Vu Monitors VMTR-15C-24 Features

• 5-Wire Resistive or P-Cap Touch Screen
• High Resolution: 1024 x 768 (XGA)
• LED Backlights
• 250 or 350 nits Brightness
• Auto Re-Start After Power Loss
• Can Be Customized to Meet Your Needs
• 3-Year Warranty

Available Options & Accessories

• 90-240 VAC Power Brick (Except VMTR-15C-24)
• VGA Cable
• Tabletop Base (VMLTR-15CL Only)
• Audio Cable
• DVI Cable
• USB Cable
• AC Power Brick for VMTR-15C-24 (PS-12-LC)
• NEMA 4X Waterproof Stainless Steel Enclosure
• Surface Capacitive Touch Screen
• Panel-Mount
• Open-Frame Configuration
• Private Label
• Wall Mount Bracket
• Other Customer – Specific Modifications

Applications

The TRU-Vu Monitors VMTR-15C-24 monitor provides a brighter-than-normal, with up to 350 nits brightness. The result is crisp, vibrant video images. This TRU-Vu industrial LCD monitor is specifically designed for use in demanding industrial, commercial,  and A/V applications. The VMTR-15C-24 industrial 15″ LCD touchscreens offer a variety of video inputs and are available in standard, open frame, rack mount, panel mount, NEMA/IP waterproof, and touch screen configurations. An extensive list of available OEM options enables you to customize a solution to your specific needs.
