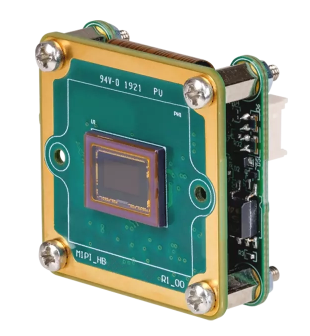

The Imaging Source DFM 36CX335-ML Color FPD-Link III Board Camera

Highlights

The Imaging Source DFM 36CX335-ML Color FPD-Link III Board Camera is a compact 5 MP embedded vision camera built around the Sony IMX335 STARVIS CMOS sensor. It captures 2,592 × 1,944 color images at up to 30 fps with 2.0 µm pixels and a rolling shutter.

Designed for embedded vision systems requiring extended distance between the camera and processor, the DFM 36CX335-ML uses an FPD-Link III interface in a compact 30 × 30 × 27.5 mm board-level form factor. Its 12-bit and 10-bit Bayer output modes provide flexible high-resolution color imaging for embedded vision applications.

Features

• 5 MP resolution with an image size of 2,592 × 1,944 pixels.
• Up to 30 fps at full resolution.
• Sony IMX335 sensor based on STARVIS CMOS technology.
• Rolling shutter supports high-resolution color image acquisition.
• 2.0 µm pixels on a 1/2.8-inch sensor.
• 12-bit and 10-bit Bayer RG output provide flexible raw color image formats.
• 12-bit dynamic range supports detailed color imaging.
• FPD-Link III interface supports extended camera-to-processor distances.
• Compact serialized camera architecture supports embedded vision integration.
• Optional M12x0.5 lens mount supports compact embedded optics.
• 20 µs to 0.5 s exposure range provides flexible image-acquisition control.
• 0–72 dB gain range supports operation across varying illumination levels.
• Low power consumption of approximately 80 mA at 18 VDC supports embedded installations.
• Compact board-level design measures 30 × 30 × 27.5 mm and weighs approximately 12 g.
• 36C FPD-Link III platform supports embedded single- and multi-camera architectures.

Applications

• Embedded vision systems
• High-resolution color inspection
• Industrial automation
• Machine vision
• Robotics
• Computer vision
• IoT imaging systems
• Remote embedded camera installations
• Multi-camera vision systems
• General high-resolution imaging
