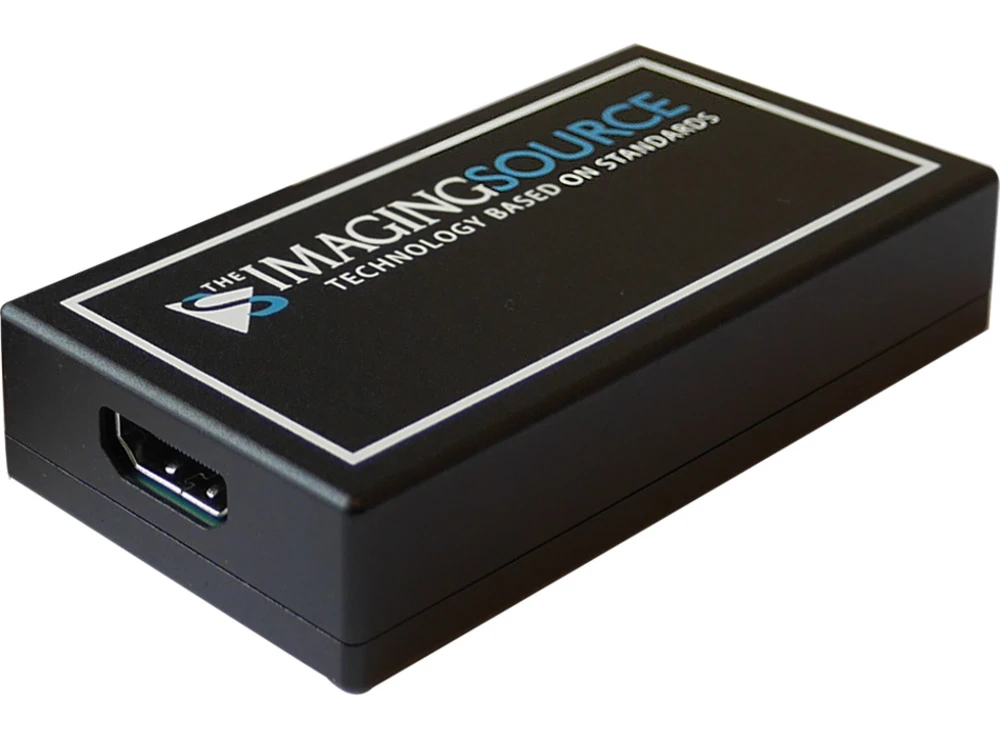

The Imaging Source DFG/HDMI


The Imaging Source DFG/HDMI HDMI-to-USB converter captures digital images from HDMI videos output sources such as medical and industrial imaging devices, computers, and other video equipment. The uncompressed video signal can then be processed or recorded via The Imaging Source’s free software tools: IC Measure, IC Capture, and IC Imaging Control SDK. This robust and cost-optimized converter is quickly connected and can be used with Windows or Linux-based operating systems.

The Imaging Source’s comprehensive range of cameras with USB 3.1, USB 3.0, USB 2.0, GigE interfaces, and other innovative machine vision products are renowned for their high quality and ability to meet the performance requirements of demanding applications.

The Imaging Source DFG/HDMI Features

  • HDMI recording to USB 3.0
  • Selection of supported resolutions 1920×1080 (Full HD) YUY2 @ 60 fps; 3840×2160 (4K) Y411 @ 30 fps; 4096×2160 (4K) Bayer8 @ 30 fps
  • Free software tools for image capture and software development
  • Power over USB
  • Video standard: HDMI
  • Manufactured by The Imaging Source
  • Windows and Linux software included

Device Driver Requirements

  • Intel Core i3 or similar, 2 GB RAM
  • USB 3.0 controller
  • Graphics card with 24 or 32 bit
  • Windows 7 (32 & 64 bit), Windows 8 (32 & 64 bit), Windows 10 (32 & 64 bit)
  • DirectX 9.0c or higher

Product Specifications

The Imaging Source (Converters)
The Imaging Source DFG/HDMI
