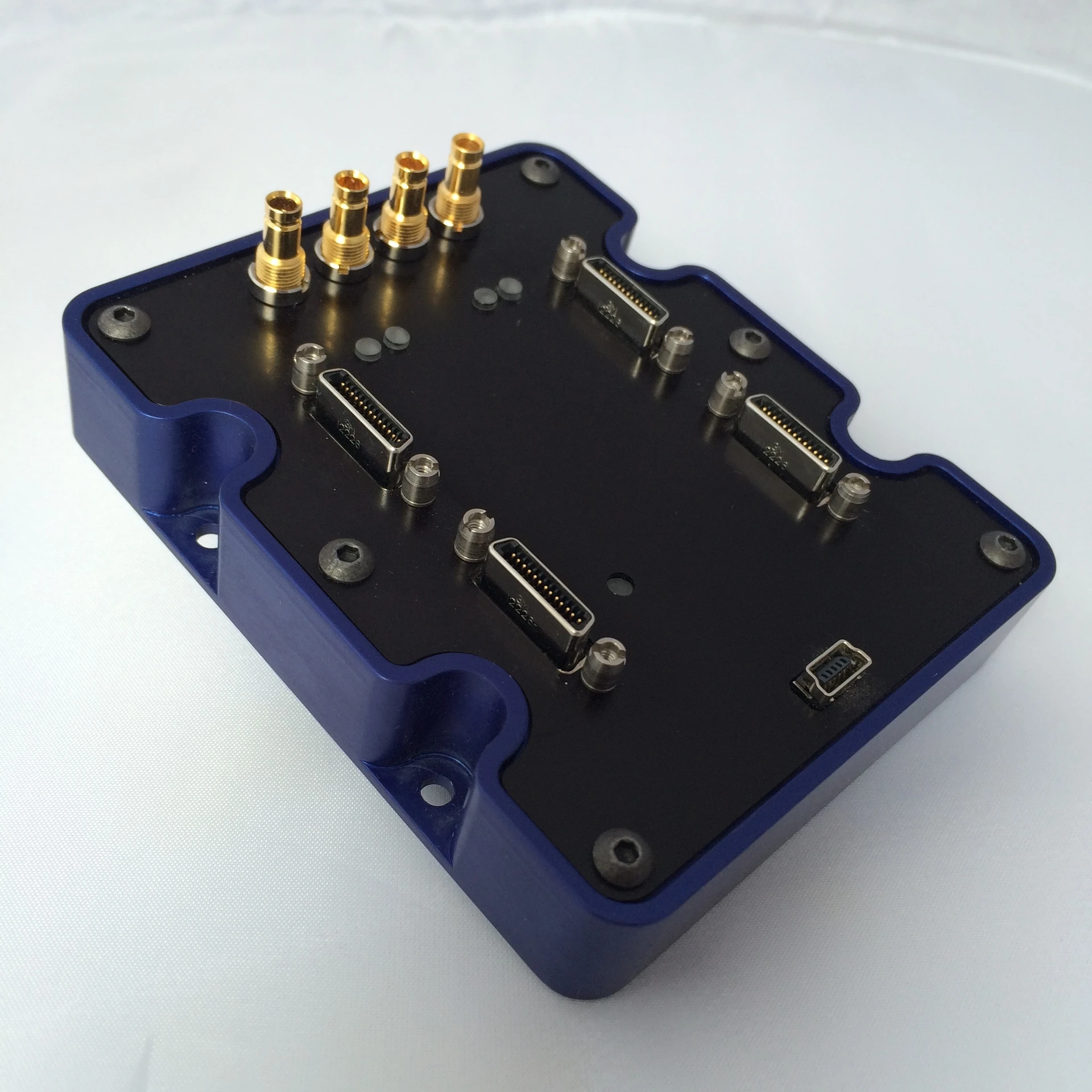

The Tecphos T2103B connects to a Camera Link camera and converts the data to a CoaXPress stream.
- Supports up to 4 Base or 2 Medium cameras.
- SDR connectors
- 1-4 CoaXPress outputs may be CXP 1, 2, 3, or 5 rates
- DIN 1.0/2.3 connectors
- Powered over CoaXPress by frame grabber
- GenICam compliant
- Integrated test patterns for debugging
- Up to 80Mhz Camera Link
