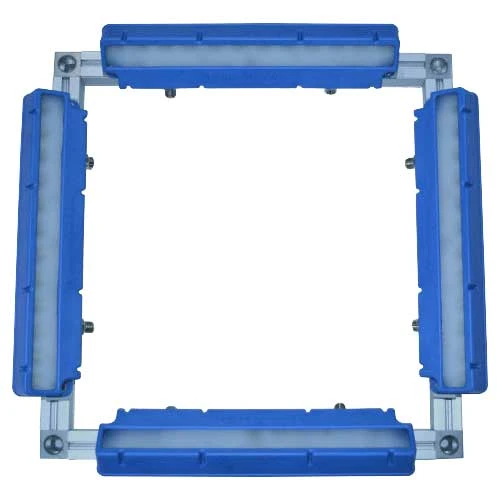

Smart Vision Lights DFL-12

Highlights

The Smart Vision Lights DFL-12 is an adjustable Dark Field Light and comes with four L300s, which allows for easy mounting using the extrusion frame. Quickly rotate any light to provide the optimal lighting pattern for a darkfield application. The Adjustable Dark Field Ring acts as a mount to daisy chain linear lights together in a square pattern. Users can attach up to 4 linear lights. The light features a 360 ̊ illumination field with two available sizes. In strobing application, all lights will pulse at the same time with either the NPN or PNP signal input. Each individual light has a manual intensity adjustment or automatically dims all four via the 0-10V analog intensity control.

Smart Vision Lights DFL-12 Features

• Adjustable lights on aluminum extrusion
• 300x300mm or 600x600mm Area
• Lights can be strobed together or separate
• Drive built-in – No External wiring to a driver
• PNP and NPN Strobe input
• Continuous operation or Strobe mode
• Dimmable via built-in potentiometer
• Analog intensity 0-10VDC signal
• Standard optics provide a tight light pattern
