MidOpt SP651 Near-UV/Visible Pass and Near-IR/Mid-Red Dichroic Block Shortpass Filter

Highlights

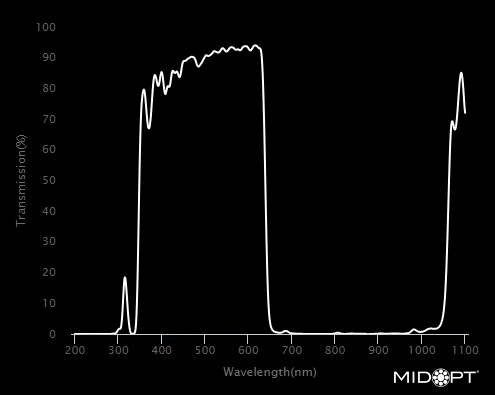

The MidOpt SP651 near-infrared blocking filters are designed to pass near-UV and visible energy from 350-645 nm while effectively blocking near-IR radiation from 650 – 1050 nm. This filter also blocks UV transmission below 350nm. CCD/CMOS imagers that need to pass near-UV AND visible wavelengths can utilize these filters to block near-IR light while preventing a reddish, washed-out color in the final image. Used at normal incidence, these filters can also be placed in front of some UV-transmitting arc lamps to limit the amount of near-IR radiation (= heat) that potentially might damage any subject under illumination.

Although the SP651 substrate is bubble-free UV grade fused silica, it is possible that some sort of additional mechanical cooling of the area around this hot mirror may be important – depending on the wattage of the lamp that is being used.

Features

  • Useful Range : 355-635nm
  • Cut-off Wavelength 50% T : 635nm
  • Tolerance : +/- 10nm
  • Peak Transmission : ≥90%
  • Surface Quality : 40/20

Product Specifications

Midopt (Filters)
MidOpt SP651 Near-UV/Visible Pass and Near-IR/Mid-Red Dichroic Block Shortpass Filter
