Metaphase Technologies TX ISO


The Metaphase Technologies TX Series of Exolights provides superior performance for the most demanding machine vision applications. Utilizes a bright and highly uniform array of LEDs. State-of-the-art driver technology delivers instant start-up and flicker-free operation and can be used both in DC continuous operation or with 4x Optical Pulse Follow Strobe.


  • Best for high-contrast, high-accuracy inspection
  • New, state-of-the-art driver and microchip – continuous DC with 4x Optical Strobe all-in-one
  • Maximum installation flexibility with T-slot L-brackets and optional mounting bracket

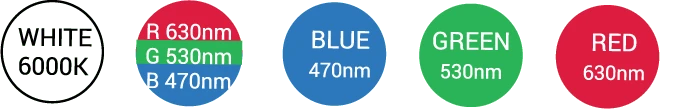

  • Available in multiple wavelengths, multispectral, and hyperspectral
  • It comes in all sizes, ranging from 75mm up to 3+ meters
  • Various polarizers, diffusers, and cover options
  • IP-rated versions


  • Front lighting, diffuse lighting, bright field, dark field
  • Economical line-lighting with lenticular diffuser
  • Direct position measurement
  • Printed circuit board inspection
  • Tube or bottle inspection
  • Machine Vision & Automation
  • Robotic Inspection

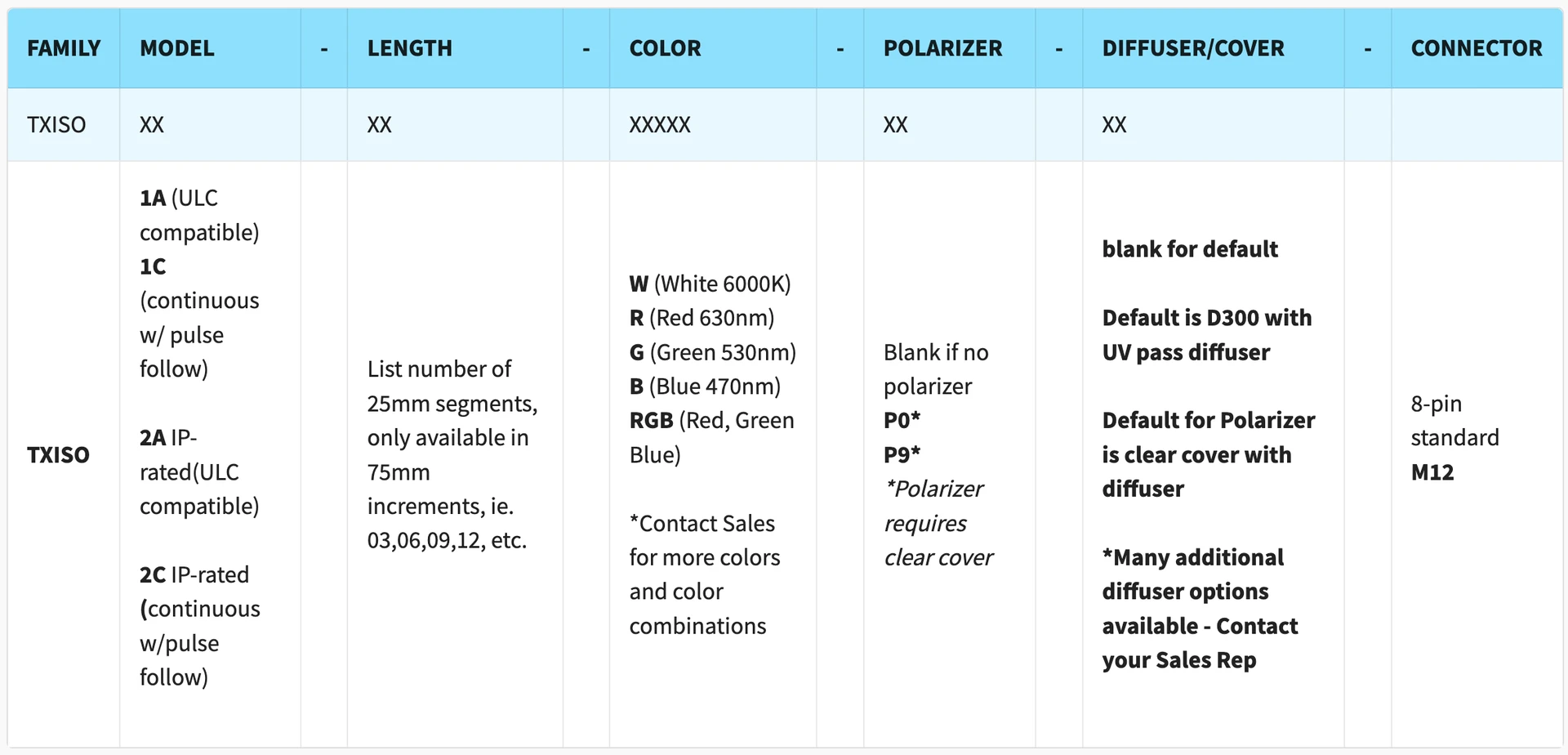

Product Specifications

Metaphase (Lights)
Metaphase Technologies TX ISO
