Metaphase Technologies MB-RBL705

Highlights

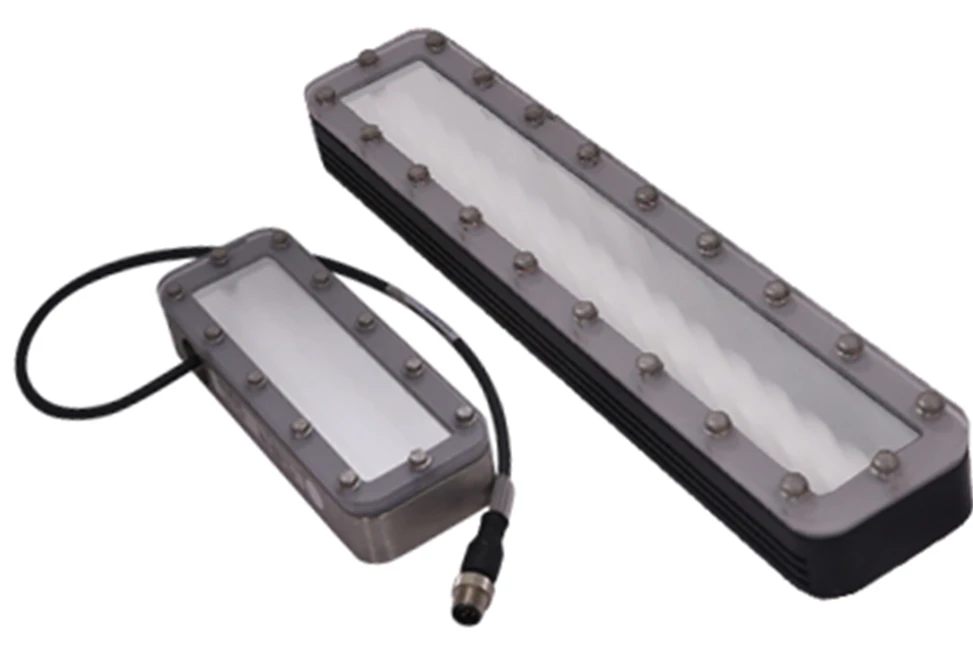

The Metaphase Technologies MB-RBL705 MetaBright Robolight provides high-intensity direct illumination comparable to MetaBright Front Lights and is designed for IP68 rated environments with an optional IP69K version available for all model sizes. Robolights feature rugged industrial housings for industrial work envelopes. The Robolight is a cost-effective and “integrator ready” machine vision illuminator with an integrated constant current driver that includes 0-10V intensity control.

Metaphase Technologies MB-RBL705 Features

Rugged housings for industrial work envelopes IP68 Black Anodized Aluminum, IP68 Stainless Steet, IP69K version available
Passive cooling (no fans needed)
Lens options for Wide, Narrow, and Line (Exolight)
Built-in Constant Current Driver with 0 – 10VDC intensity control, compatible with DDC-3 and ILD-35 Dimmers

Metaphase Technologies MB-RBL705 Applications

The MB-RBL705 can be used in applications such as,

Large Work envelopes
Packaging, food, and pharmaceuticals
Liquid filling inspection
Geometry measurements of long targets
Harsh environments
Washdown applications
IP69K version available
Machine Vision & Automation
Robotic Inspection
