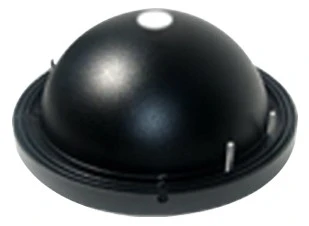

Metaphase Technologies MB-DL101

Highlights

The Metaphase Technologies MB-DL101 diffused dome light is ideal for inspection of reflective, specular, rough, or topographic surfaces. This special illuminator provides intense, evenly diffused illumination. Optical grade reflector coating returns 99.9% of light for optimum diffused output. Current dome lights range in size from 1.4 inches (36mm) to 44 inches (1106mm) ID. The Diffused Dome Light is available with a wide variety of LED colors such as white, red, green, blue, IR, UV (365nm and 395nm), and RGB.

Metaphase Technologies MB-DL101 Features

• High intensity and uniform, non-directional illumination for area scan
• Thermal management for consistent performance
• Ideal for highly reflective surfaces and textured or topographic objects
• Provides cloudy day illumination minimizing shadows and glare
• Enclosed workspace blocks interference of ambient light
• Optical grade reflector coating reflects 98% of light for optimum output
• Built-in Constant Current Driver with 0 – 10VDC intensity control, compatible with DDC-3 and ILD-35-24-L

Metaphase Technologies MB-DL101 Applications

The MB-DL101 can be used in applications such as,

• Highly specular applications
• Metallic materials such as aluminum, brass, copper, steel & stainless steel
• Curved objects like gel tablets, bearings, cylinder-shaped items
• Machine Vision & Automation
• Robotic Inspection

Available Wavelengths
