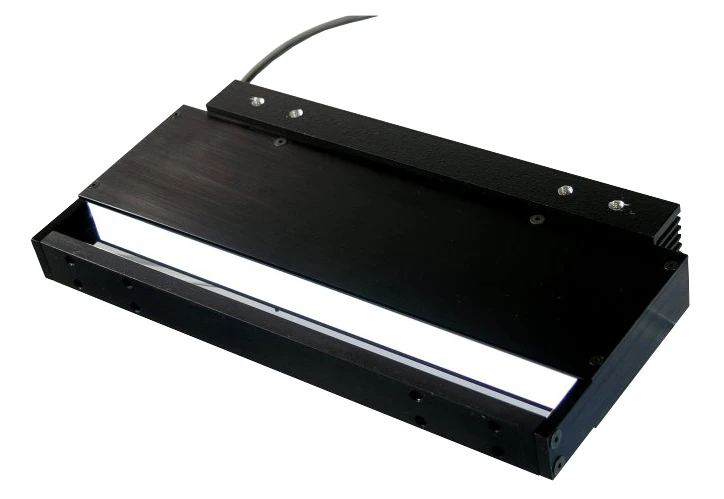

Metaphase Technologies MB-DALL80

Highlights

The Metaphase Technologies MB-DALL80 Diffused Axial Line Light uses beam-splitter technology to radiate homogenous, coaxial illumination in line with the camera aperture. Diffused coaxial lighting eliminates dark spots or shadows inherent in other forms of illumination. Equipped with multiple tapped holes for mounting, the MB-DALL can be easily integrated into existing vision systems. An advanced thermal management system ensures a long lifetime and cost-effectiveness. The Metaphase Technologies MB-DALL80 is also available with strobe and dimming options. This Diffused axial line light can be used in applications such as,

• Cylindrical items inspection for surface flaws
• Defect detection in glass/plastic containers
• Bottle inspection
• CD/DVD label inspection
• Screw/Bolt thread inspection
• Glass sheet inspection
• Inspection of LCD displays; medical and automotive components etc.
• Machine Vision & Automation
• Robotic Inspection

Metaphase Technologies MB-DALL80 Features

• The exclusive optical beam splitter and diffuser stack
• Multiple tapped holes for ease of mounting
• Thermal management affords cost-effective design
• Optional dust cover protection available
• Very high intensity with ±5% uniformity
• High-Density Precision Chip Technology (HDPCT
• Custom sizes available
• Optional constant current driver with 0-10VDC intensity control (-Z option)
• Flicker-free performance and instant start-up with Metaphase analog driver technology

Metaphase Technologies MB-DALL80 Available Wavelengths
