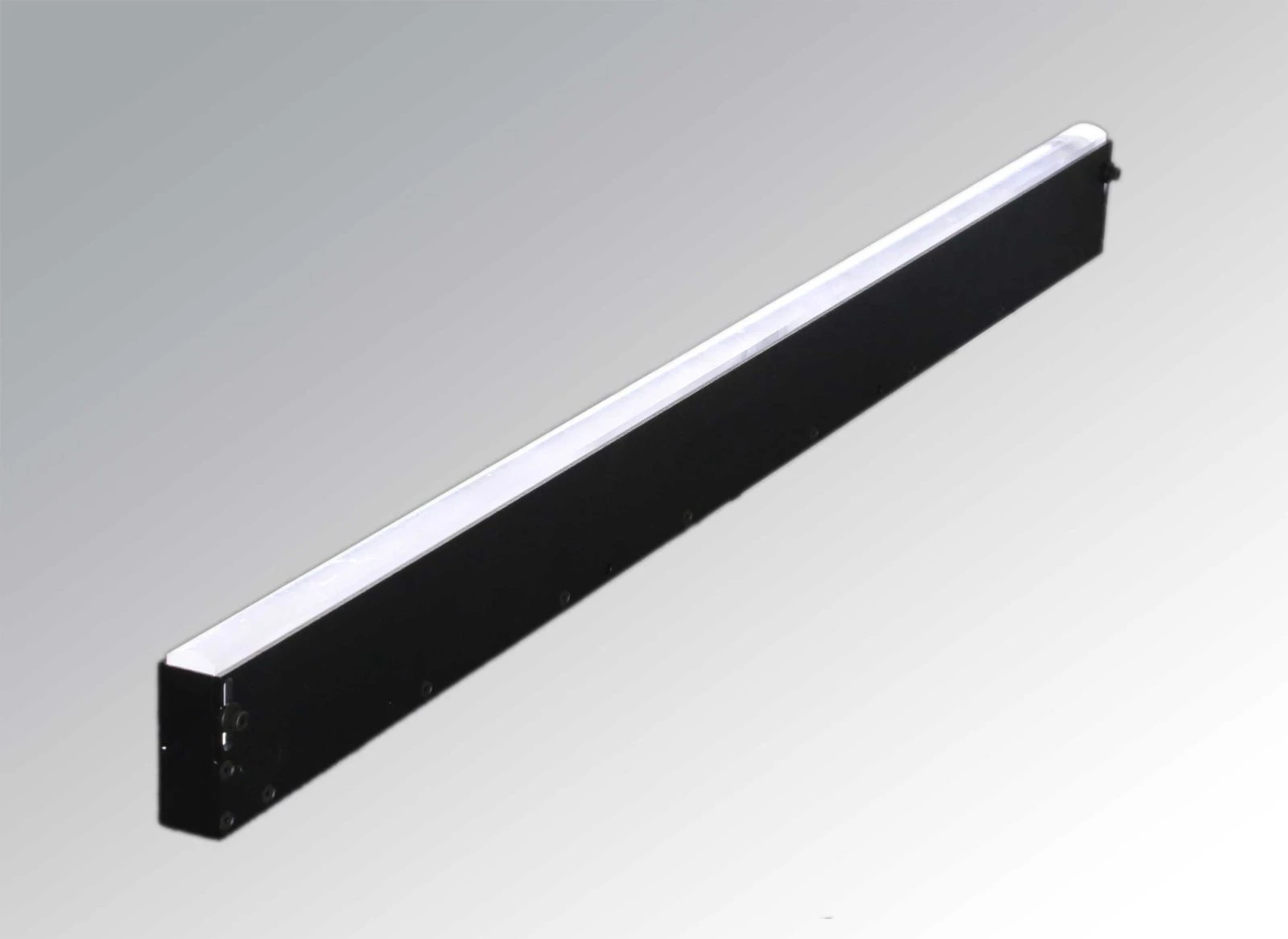

Metaphase Technologies LL304

Highlights

The narrow, structured beam of the Metaphase Technologies LL304 Metalight Line Light delivers high intensity and concentrated light for the narrow field of view of a traditional line scan camera. The high intensity and uniformity allow the Metalight Line Light to be used as front light to inspect for material defects, angled to obtain an off-axis effect to highlight surface defects, or it may be placed beneath the object for a backlight effect to inspect for holes, voids, or contaminants. The Metalight Line Light is available with a wide variety of LED colors such as white, red, green, blue, IR, UVS, UVL, and RGB with independent color control.

Metaphase Technologies LL304 Features

  • High Uniformity both laterally and longitudinally
  • High intensity, over 220,000 Lux
  • Lens options for various beam widths and working distances
  • Adjustable lens focusing range of mm to meters
  • Backlight versions for web backlight and silhouetting applications
  • Lengths range from 2 inches to 65 inches
  • Built-in constant current driver(s)
  • Optional 0-10VDC Intensity Control (Z option)
  • Compatible with DDC-3 and ILD-35-24-L Dimmers

Available Wavelengths

Metaphase Technologies LL304 Applications

The LL304 can be used in applications such as,

  • Web Inspection (Foil, Plastic Film, PCBs, glass, paper, web converting, etc)
  • Geometric measurements of long targets
  • Direct Position measurement
  • Printed circuit board inspection
  • Tube or bottle inspection
  • Quality control in the food, chemicals, and textile industry
  • Detection of holes in highly transparent films (Backlighting) and laminated glass
  • Nonwovens
  • Fabrics
  • Solar Cells
  • Hot Steel Inspection
  • Machine Vision & Automation
  • Robotic Inspection

Product Specifications

Metaphase (Lights)
Metaphase Technologies LL304

Available Variations
