Imperx PCI/PCI Express VCE-CLPCIe04

Simultaneous acquisition from two base cameras or one medium camera using intelligent DMA for fast, efficient use of the ExpressCard bandwidth with a flow-through pipelined architecture for low latency.

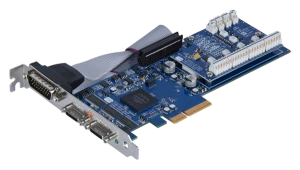

The IMPERX VCE-CLPCIe04 is a professional level PCI Express frame grabber that enables users to view and store in real time megapixel images from any Camera Link® source onto desktop computers. The VCE-CLPCIe04 is capable of capturing single or multiple frames and standard AVI clips from any Base, Medium, Full or Deca Camera Link® compliant video source. Each captured frame can be stamped with a user message along with the date and time of capture. The VCE-CLPCIe04 comes with easy to use camera configuration software for fast integration of the frame grabber into demanding machine vision environments.

Features

• Supports Windows XP® / Windows Vista® / Windows 7®
• Supports 32-bit and 64-bit Windows OS
• Supports Acquisition from a Base, Medium, Full or Deca Camera Link® camera
• PCIe x4 compliant providing 10 Gbps of bandwidth
• Intelligent scatter/gather DMA for fast, efficient use of PCIe bandwidth and system memory
• Flow-through pipeline architecture for low latency
• Built in CC pulse generators
• Many advanced features including look up tables, histograms, RGB gain/offset with auto-white balance, hex pixel dump, etc.
• Bayer pattern interpolation
• Unique ‘auto-learn’ feature automatically recognizes camera parameters and simplifies CAM file creation
• Backwards compatible with FrameLink (PCMCIA) software
• Full software suite including drivers, SDK and application
• Fully compliant with the Power over Camera Link® (PoCL) and Safe Power specifications
• Built in comprehensive programmable logic controller (PLC)
• Includes 4 external inputs each configurable as TTL, LVDS or Opto-coupled
• Includes 4 general outputs each configurable as TTL, LVDS, Opto-coupled or Open Collector
