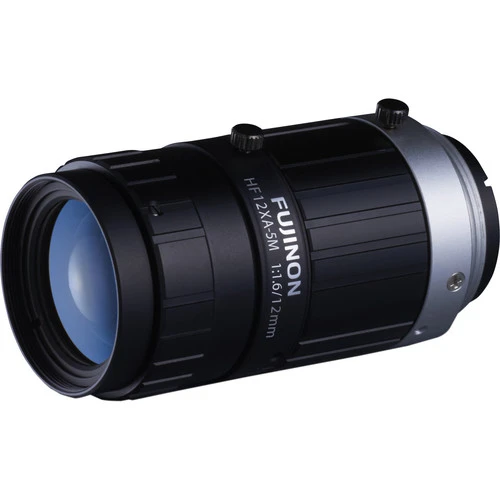

Fujinon 4D HF12XA-5M Lens
Highlights
The Fujinon 4D HF12XA-5M Lens is compatible with 2/3″ to 1.1″ (max.) large image sensor cameras such as the Sony IMX250 sensor.
Fujinon 4D HF12XA-5M Lens Features
- 12mm Focal Length
- F1.6-F16 Iris Range
- Manual Iris & Focus
- C-Mount
- M25.5 x 0.5 Thread Mount
The HF-XA-5M Series
The Fujinon HF-XA-5M series is designed for “4DHR” and compatible with IMX250 high-performance CMOS image sensor (2/3″, 5 megapixels, 3.45µm pixel pitch). It maintains a highly consistent image sharpness from the center to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installation and shooting conditions. Despite being high-resolution lenses, the HF-XA-5M series is the best for use with small machine vision cameras.
The HF-XA-5M series adopts Fujifilm’s original mechanical structure design of “vibration-resistance and impact-resistance”. The performance of “vibration-resistance and impact-resistance” is secured even though the iris can be adjusted, these features make operation easier. By adopting internal mechanical focus, the overall length of the lens will not change when focused Provided with 3 positioning holes for fixation of the Iris and focusing on the lens body and the positioning hole can be selected according to set conditions.
Product Specifications
