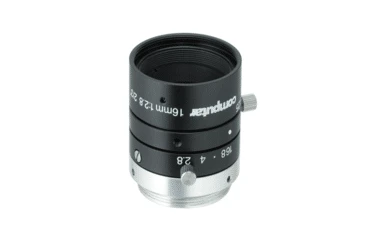

Computar M1628-MPW3 Lens
Highlights
The Computar M1628-MPW3 Lens is a monofocal machine vision lens offering a 2/3″ format, 16mm focal length, and 6 megapixels
Features
- 2/3” Format
- 6 Megapixel
- 16mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
Series
The MPW3 Series has a fixed focal length range from 5mm to 75mm and a resolution of 8 megapixels at max. 2.74μm. The C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
