Ametek Phantom T3610


The Ametek Phantom T3610 packs ultrahigh-speed frame rates and performance into a compact platform, 50% lighter than the closest equivalents. Back side illuminated (BSI) sensor technology maximizes sensitivity for sub-microsecond exposure times as often required in high-velocity testing.

At its full 1 Mpx resolution of 1280 x 800 the Phantom T3610 captures over 38,000 fps. This 38 Gpx/second throughput is maintained through its full range for a top frame rate of 875,000 fps at both 1280 x 32 (standard mode) and 640 x 64 (binned mode).


  • 38,040 fps at 1280 x 800
  • Exposure Index: Mono 40,000 – 200,000 D | Color 12,500 – 64,000 D
  • Up to 256GB RAM

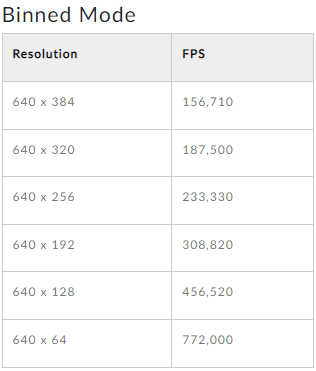

  • Binning Mode – frame rate boost at 640 x 384 and below
  • 12-bit depth
  • CineMag V compatibility
  • Full Phantom Features and connectivity
  • Programmable I/O – Assign and define camera signals

Product Specifications

AMETEK (Vision Research & Phantom Camera Technology)
